System coifiguration configuration
LT is configured as shown below.

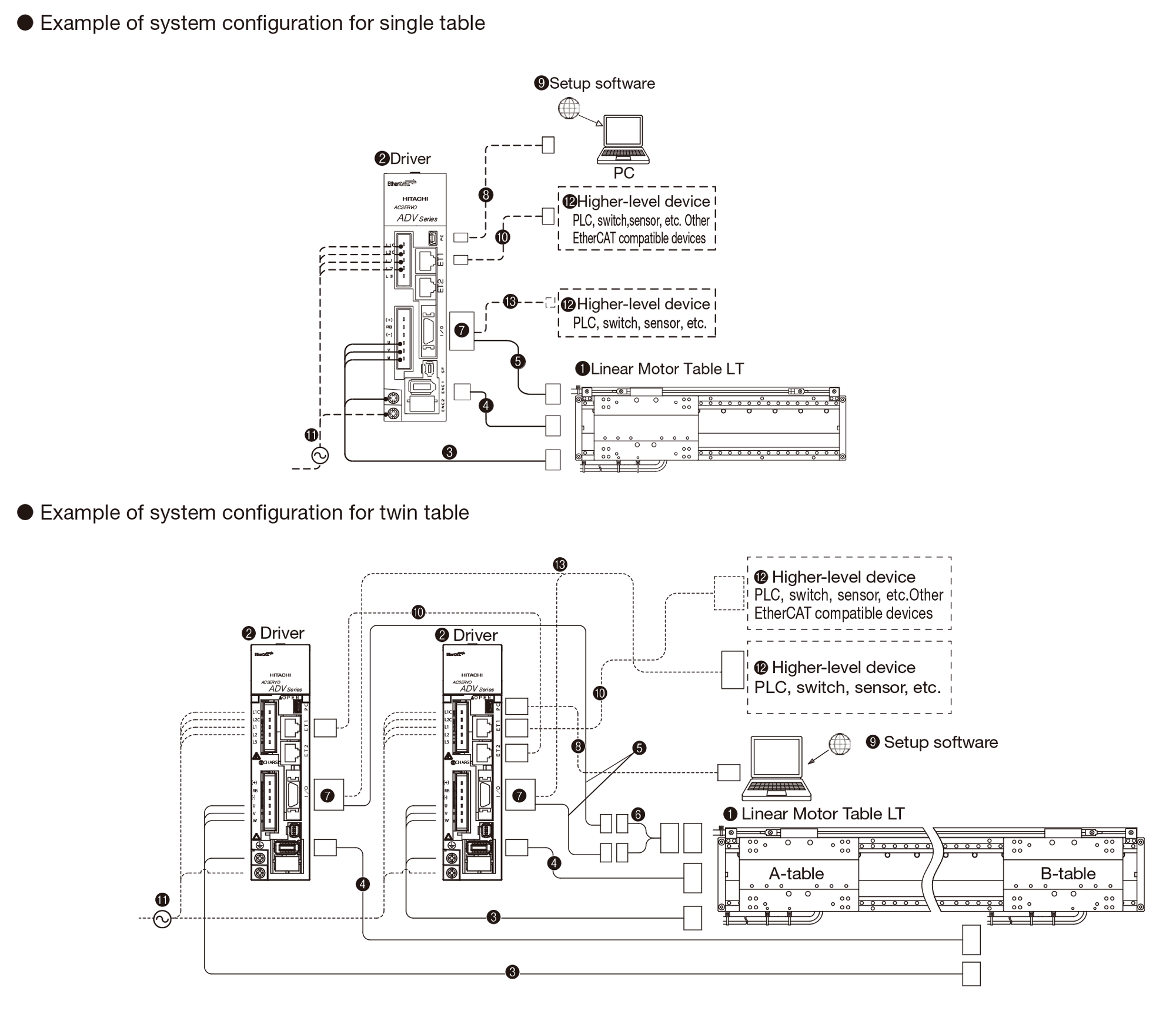

System configuration for LT with driver ADVA (…EC)
*Click the image to enlarge it.
| No. | Name | Identification number |
|---|---|---|
| ① | Linear motor table | See "Dimensional Diagrams" |
| ② | Driver | Select a driver that conforms to the linear motor table type. |
| ③ | Motor extension cord | TAE20V7-AM□□(applicable to LT…CE, LT…LD） |
| TAE20V9-AM□□（applicable to LT…H) | ||
| ④ | Encoder extension cord | TAE20V4-EC□□（applicable to LT…CE, LT…LD) |
| TAE20W0-EC□□（applicable to LT…H) | ||
| ⑤ | Sensor extension cord(3) | TAE10V8-LC□□ |
| ⑥ | Limit branch cord(0.1m) | TAE20V2-BC |
| ⑦ | I/O connector | TAE20R5-CN(1)（applicable to driver for pulse train command） |
| TAE20V5-CN(2)（applicable to driver for EtherCAT） | ||
| ⑧ | PC connection cable | USB mini B cable This must be prepared by customer. |
| ⑨ | Setup software | ProDriveNext Please download from the official website of Hitachi Industrial Equipment Systems Co., Ltd. |
| ⑩ | Ethernet cable | This must be prepared by customer. |
| ⑪ | Power cord | |
| ⑫ | Higher-level device | |
| ⑬ | I/O connector connection cable |
| Notes(1) | I/O connector TAE20R5-CN is a combined product of 10150-3000PE (connector) and 10350-52F0-008 (cover) from 3M Japan Limited. |
| (2) | I/O connector TAE20V5-CN is a combined product of 10120-3000PE (connector) and 10320-52F0-008 (cover) from 3M Japan Limited. |
| (3) | Signal lines #9 and #11 of the sensor extension cord for the B-table are not in use. |
| Remark |
The lengths of motor extension cord, encoder extension cord, and sensor extension cord are specified in the □□ located at the end of the identification number for length of 3 to 10m in units of 1m. The cord length is specified in two digits even when the length is less than 10m. (For 3m: TAE20V7-AM03) For specifications with a temperature sensor, a thermal protector relay cord is required. |

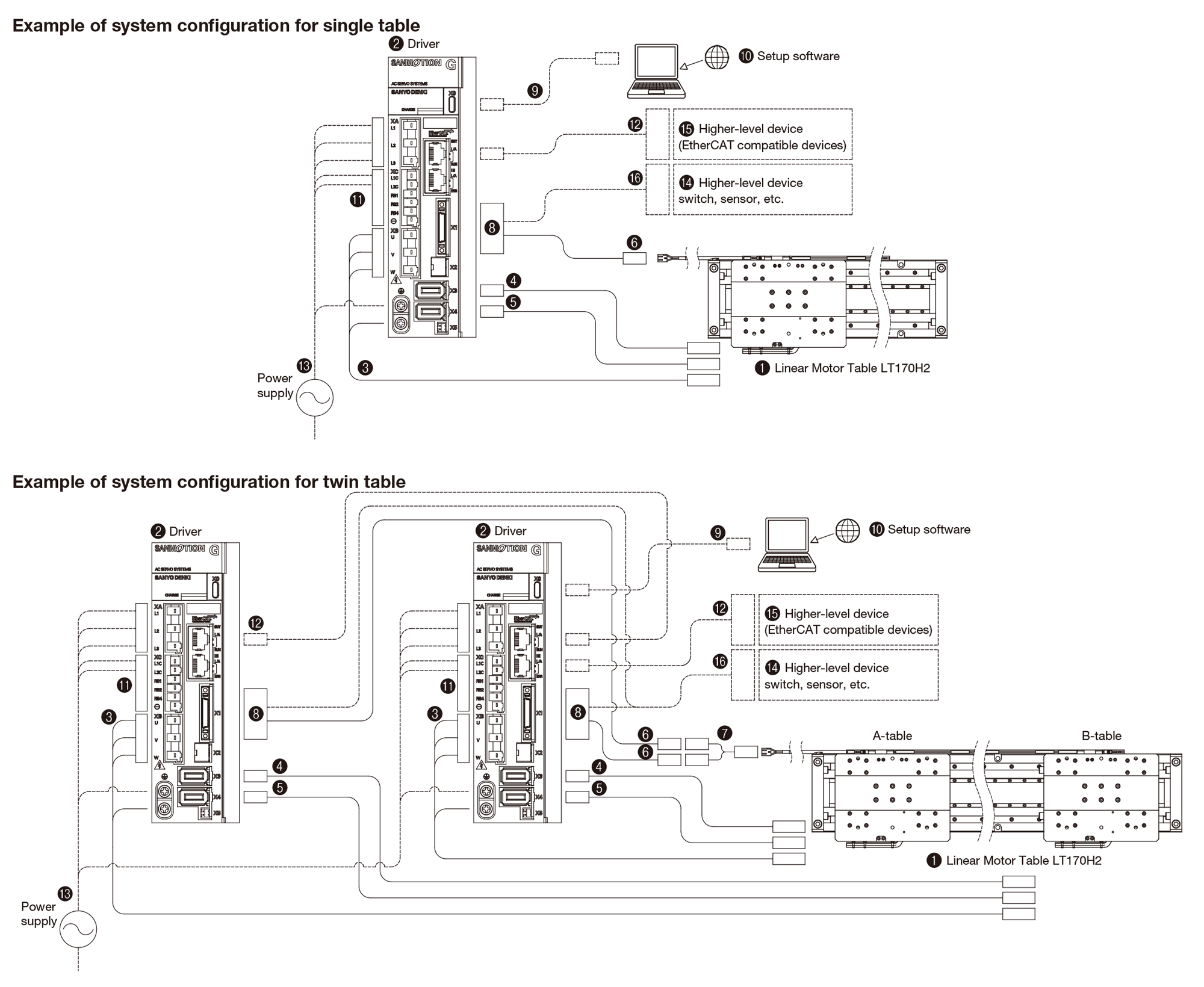

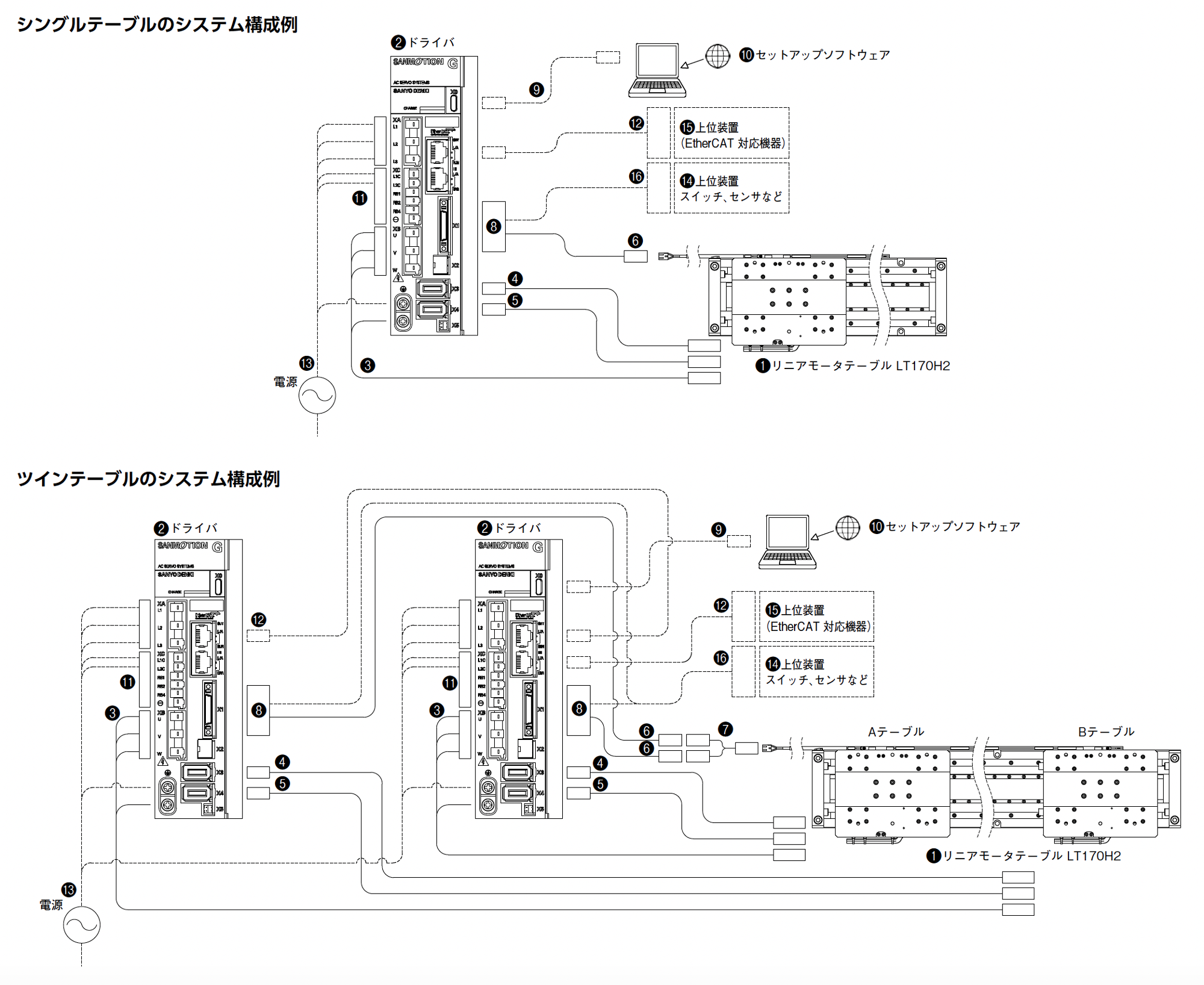

System configuration when using the SANMOTION G (EtherCAT communication) driver
*Click the image to enlarge it.
| No. | Name | Identification number |
|---|---|---|
| ① | Linear motor table | See "Dimensional Diagrams" |
| ② | Driver | GADSA03AHA4 |
| ③ | Motor extension cord | TAE20V7-AM□□ |
| ④ | Encoder extension cord | TAE20V4-EC□□ |
| ⑤ | Hall sensor extension cord | TAE20V8-EC□□ |
| ⑥ | Sensor extension cord | TAE10V8-LC□□ |
| ⑦ | Limit branch cord(0.1m) | TAE20V2-BC |
| ⑧ | I/O connector | AL-01131482-01(Sanyo Denki Co., Ltd.) |
| ⑨ | PC connection cable | USB Type-C cable This must be prepared by customer |
| ⑩ | Setup Software | Please download SANMOTION MOTOR SETUP SOFTWARE from the website of Sanyo Denki Co., Ltd. |
| ⑪ | Power Connector Set A | AL-01135740-01(Sanyo Denki Co., Ltd.) |
| ⑫ | Ethernet cable | This must be prepared by the customer. |
| ⑬ | Power cord | |
| ⑭ | Higher-level device | |
| ⑮ | Higher-level device (EtherCAT-supported device) | |
| ⑯ | I/O connector connection cable |
| Remark | The lengths of motor extension cord, encoder extension cord, and sensor extension cord are specified in the □□ located at the end of the identification number for length of 3 to 10 m in units of 1 m. |
| The cord length is specified in two digits even when the length is less than 10 m. (For 3 m: TAE20V7-AM03) |
Some products are not shown in the catalogue. Also, modifications can be made to meet your requirements. Please do not hesitate to make inquiries.
