Precision Positioning Table L

Precision Positioning Table L is a light weight, long stroke type positioning table in which two rows of high accuracy, high rigidity type IKO Linear Ways are incorporated on a slide table and bed made of high-strength aluminum alloy together with a precision ball screw for the drive mechanism. Parallel arrangement of two sets of Linear Ways achieves stability as well as high running and positional accuracy in addition to high load capacity. Many variations in table sizes and stroke lengths are available. Dedicated XY brackets are also available for this series. Therefore, an assembly such as an X-Y robot can be readily constructed to suit the requirements of each application. With IKO's C-Lube technology integrated in the linear ways, the maintenance work including regreasing of the Linear Ways and the ball screw can be greatly reduced. This series is widely used and its excellent performance has been verified as a high accuracy positioning mechanism for assembly systems, working machines, measuring instruments, etc.

Product Features

Precision Positioning Table L Detailed description
Multi-Shaft Composition is Easy because of Abundant Variations

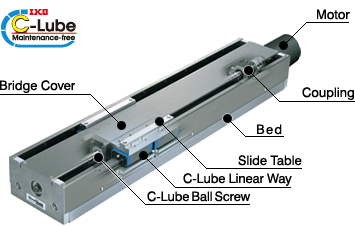

IKO Precision Positioning Table L (TSL・・・M) is a light-weight, long stroke positioning table that is composed of a slide table and bed made of high strength aluminum alloy.
By integrating IKO's C-Lube Linear Ways and a C-Lube Ball Screw, maintenance free operation for a period of 5 years or 20,000 km is made possible. These features are built into the inside portion of the table and feeding mechanism, and therefore we were able to achieve maintenance free operation without sacrificing performance.
There are abundant variations of table sizes and stroke lengths, and exclusive XY brackets are made for this series. Therefore, it is possible to design systems such as two-axis robots to efficiently meet application requirements.


Form and Size Table Width Dimensions (mm) Stroke Length(mm)
50 100 150 200 250 300 400 500 600 800 1000
TSL 90 M 90 ○ ○ ○ ○ ○ ○
TSL 120 M 120 ○ ○ ○ ○ ○ ○ ○ ○
TSL 170 M 170 ○ ○ ○ ○ ○
TSL 170S M 170 ○ ○ ○ ○ ○ ○
TSL 220 M 220 ○ ○ ○ ○ ○ ○

Some products are not shown in the catalogue. Also, modifications can be made to meet your requirements. Please do not hesitate to make inquiries.
