Precision Positioning Table TE

IKO Precision Positioning Table TE is a lightweight and compact positioning table using a high-strength aluminum alloy for its main components with a slide table assembled inside a U-shaped bed.
Use of a Precision ball screw for the feeding mechanism guarantees high reliability and high accuracy positioning.
The product is long term maintenance free by integrating IKO's C-Lube internal lubrication system within the linear motion rolling guide and ball screw, reducing the frequency of relubrication.
Various specifications such as ball screw lead, motor type and sensor mounting can be configured, so that an ideal positioning table can be created according to usage.
Ideal for a wide range of usages from devices requiring high positioning accuracy to general conveying, such as part processing, assembly, inspection and conveying equipment, etc.

Product Features

Precision Positioning Table TE Detailed description

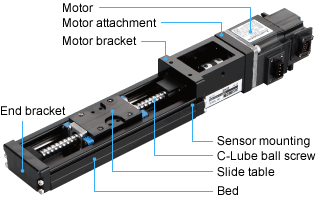

Precision Positioning Table TE is a lightweight, low-profile and compact positioning table using high-strength aluminum alloy for its main components with a slide table assembled inside a U-shaped bed. Using a precision ball screw adopted for the driving mechanism, the product is long term maintenance free by integrating IKO's C-Lube internal lubrication system within the linear motion rolling guide integrated with the slide table and ball screw.

1.Light weight, low profile, compact size!

A light weight, low-profile and compact positioning table using a high-strength aluminum alloy for the main components.
Thanks to the optimal design of linear motion rolling guide and ball screw, cross sectional height as low as 26 mm for TE50, 33 mm for TE60 and 46 mm for TE86 is realized.
Since sensors are designed to be mounted directly into the bed sensor mounting groove, rather than an external rail, compactness is improved.

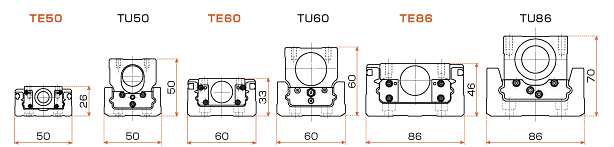

Comparison with IKO Precision Positioning Table TU

Sectional height

Sectional height

Mass

Model and size Stroke length
mm
Overall length
mm
Mass (1)
kg
Mass / 100 mm
kg
TE50・・・B 60 218 0.52 0.24
TU50 60 226 1.8 0.80
TE60・・・B 100 269 1.0 0.37
TU60 100 298 3.3 1.11
TE86・・・B 300 523 3.7 0.71
TU86 250 498 10.9 2.19
Note (1) The value shows the mass of the entire table with 1 standard table. Mass of the motor is not included

2.High accuracy positioning!

By combining IKO original linear motion technology with a precision ball screw, even more accurate positioning is possible.

3.Long term maintenance free!

The product is long term maintenance free due to the integration of IKO's C-Lube internal lubrication within the linear motion rolling guide and ball screw. This allows the reduction of relubrication frequency and improves the reliability of machines or devices.

4.Stunningly low price!

The excellent cost performance is realized by reducing the number of parts, and optimizing the part shapes.

Some products are not shown in the catalogue. Also, modifications can be made to meet your requirements. Please do not hesitate to make inquiries.
