Alignment Module AM

Alignment Module AM is a positioning module developed for use as an alignment stage by combining the high rigidity Crossed Roller Bearing and Linear Way E with the Precision Positioning Table TU. Because the height dimensional tolerance is accurately managed within ±10μm, the alignment stage can be configured without adjusting the heights of respective alignment modules.

Download

Product Features

Alignment Module AM Detailed description
Positioning module enabling various motions
This is a positioning module developed for alignment stage by combining the high rigidity Crossed Roller Bearing and Linear Way based on the Precision Positioning Table TU.
Height adjustment is not required
Height dimensional tolerance is managed at high accuracy of ±10μm.
Alignment stage can be configured without adjusting the heights of respective Alignment Module AM.
Flexibility of freely designing the stage according to the usage
This unit helps you freely design the alignment stage according to the usage by combining various stages and bases into the alignment module AM.

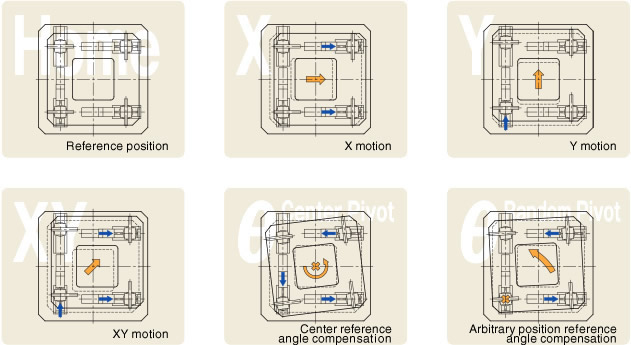

Configuration example and operating principle of alignment stage

Configuration example and operating principle of alignment stage

Line-Up

Alignment Module AM
Shape
Model
Size
Stroke

(mm)

Positioning repeatability

(mm)

W×L×H(mm)
AM25
86×130×47
30
±0.002
AM40
120×180×78
30
±0.002
AM60
220×290×110
90
±0.002
AM86
350×390×148
120
±0.002

Some products are not shown in the catalogue. Also, modifications can be made to meet your requirements. Please do not hesitate to make inquiries.
