Precision Positioning Table TS・CT

TS/CT Compact Series Table is a positioning table which incorporates IKO's Crossed Roller Way, a long established precision type linear motion rolling guide. It is assembled in conjunction with a high rigidity and superior vibration-damping slide table and bed made of cast iron together with a precision ball screw as the drive mechanism. This table achieves a low sectional height, high reliability, and high accuracy by making the most of the features of the compact, high accuracy and high rigidity Crossed Roller Way. Compact Series TS/CT includes a single axis type and also a two axis type and is widely used in applications requiring high accuracy positioning such as precision measuring instruments and systems.

Product Features

Low profile and compact
Small height dimension is achieved even two axis specification with an optimum design adopting crossed roller ways as linear motion rolling guides.
High accuracy positioning
High running accuracy and accurate positioning can be achieved by use of a ground, cast iron slide table and bed, and also by using carefully selected high accuracy parts.
Optimum design by a large surface of the slide table
Compact Series positioning table has a large top surface of the table. So it is suitable for the machine or equipment whose work is operated on the top surface of the slide table.

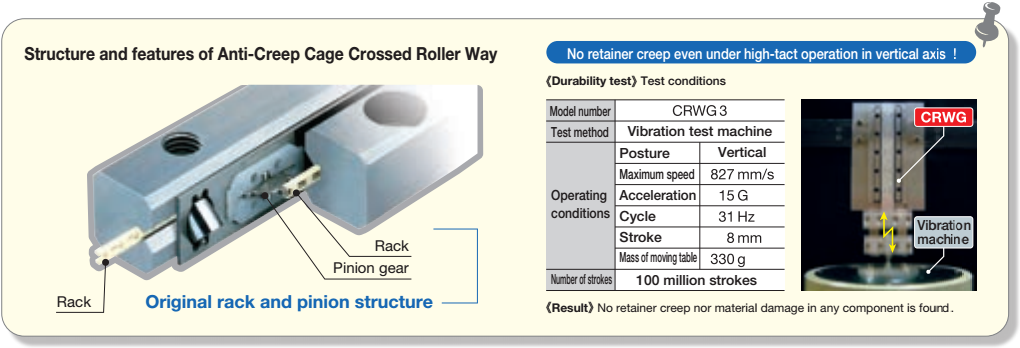

Structure and features of Anti-Creep Cage Crossed Roller Way

Some products are not shown in the catalogue. Also, modifications can be made to meet your requirements. Please do not hesitate to make inquiries.

Linear Motor Drive

Ball Screw Drive

Worm Gear Drive Type

Timing Belt Drive Type
