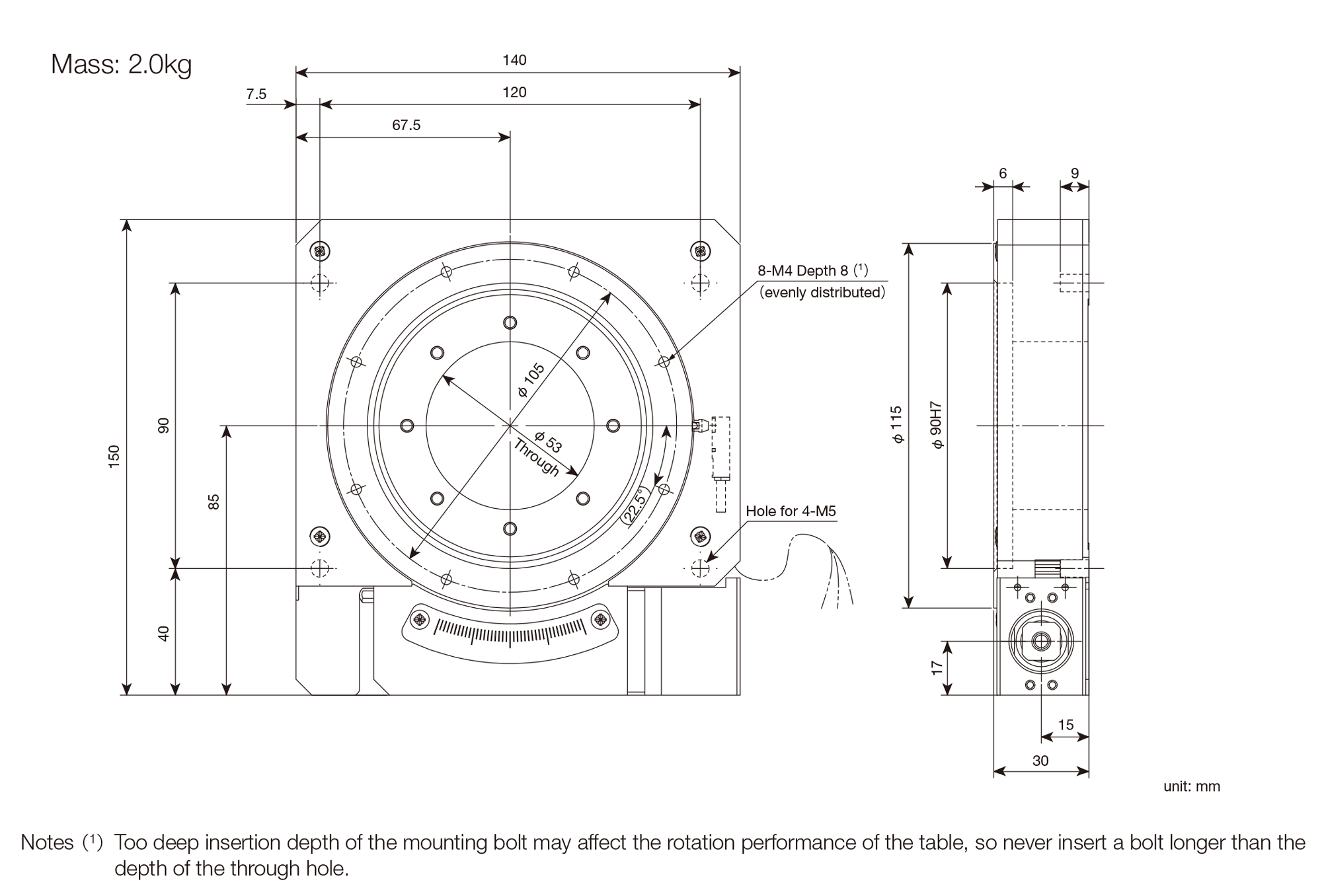

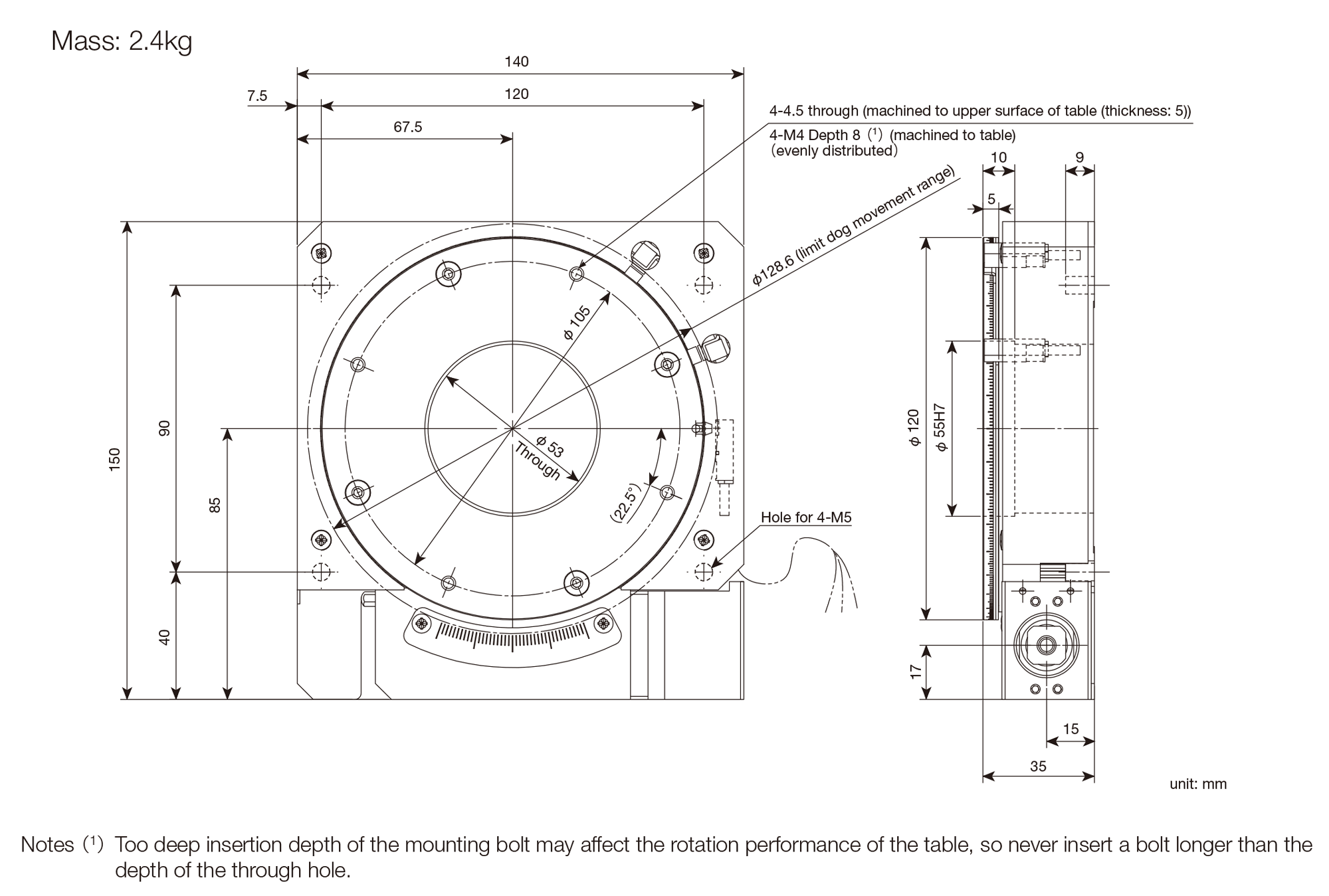

The dimensions of SK120W are shown below.
Some products are not shown in the catalogue. Also, modifications can be made to meet your requirements. Please do not hesitate to make inquiries.
The SK…W is a rotation stage which employs a worm gear mechanism to achieve full 360 degree rotation. IKO Crossed Roller Bearings are used in the rotary guiding mechanism and also directly for a table in order to achieve high-precision rotational runout, high rigidity and a low profile.
