Dimension

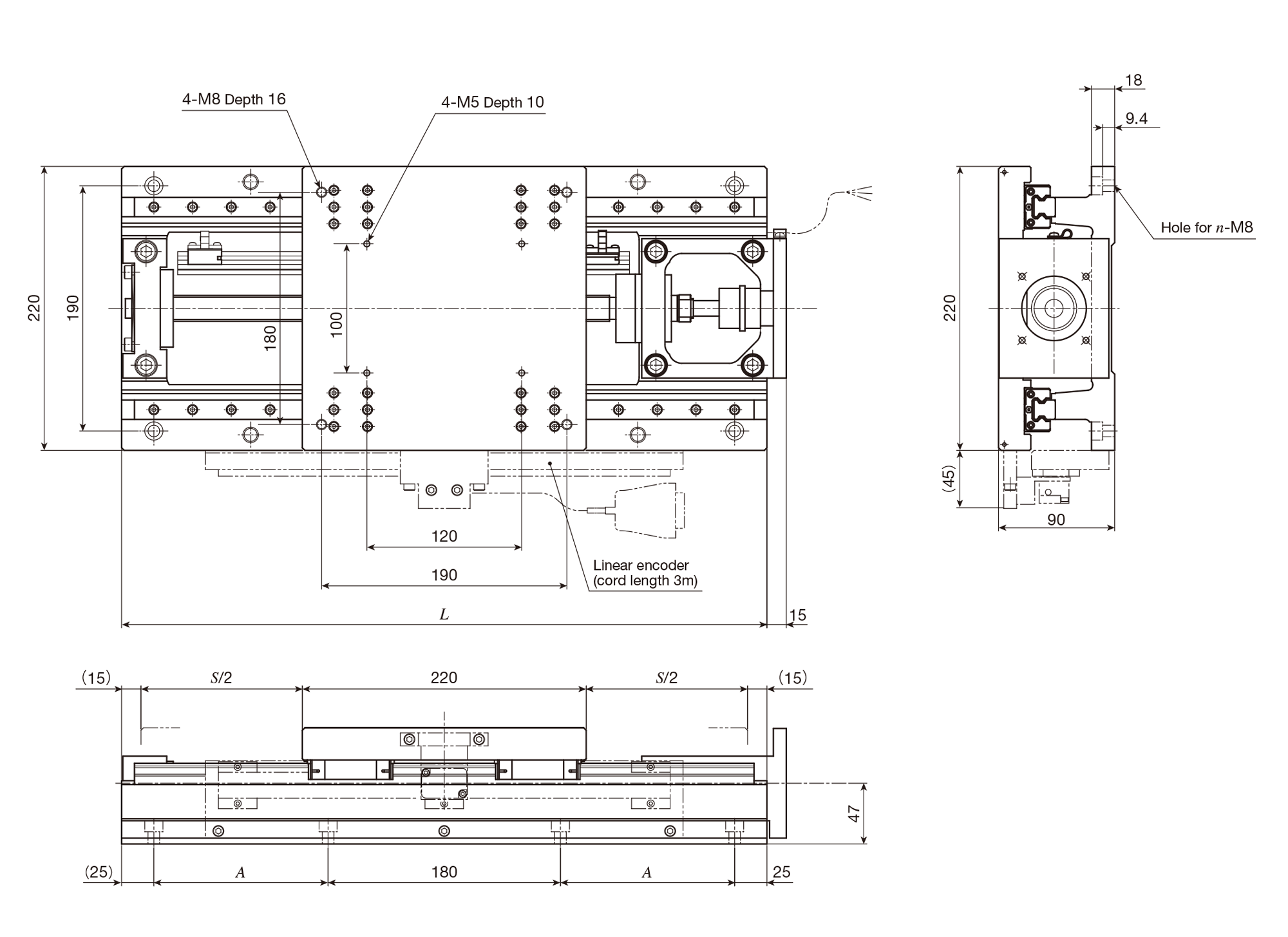

The dimensions of TX220M are shown below.
unit: mm
| Identification number | Stroke length S |
Overall length L |
Mounting holes of bed | Mass（Ref.） Kg |
|
|---|---|---|---|---|---|
| A (the number of holes×pitch) |
n | ||||
| TX220M-150 | 150 | 400 | 85 | 8 | 34 |
| TX220M-200 | 200 | 450 | 110 | 8 | 37 |
| TX220M-250 | 250 | 500 | 135 | 8 | 39 |
| TX220M-300 | 300 | 550 | 160 | 8 | 42 |
| TX220M-400 | 400 | 650 | 210（2×105） | 12 | 47 |
Some products are not shown in the catalogue. Also, modifications can be made to meet your requirements. Please do not hesitate to make inquiries.
