Dimension

The dimensions of AM25 are shown below.

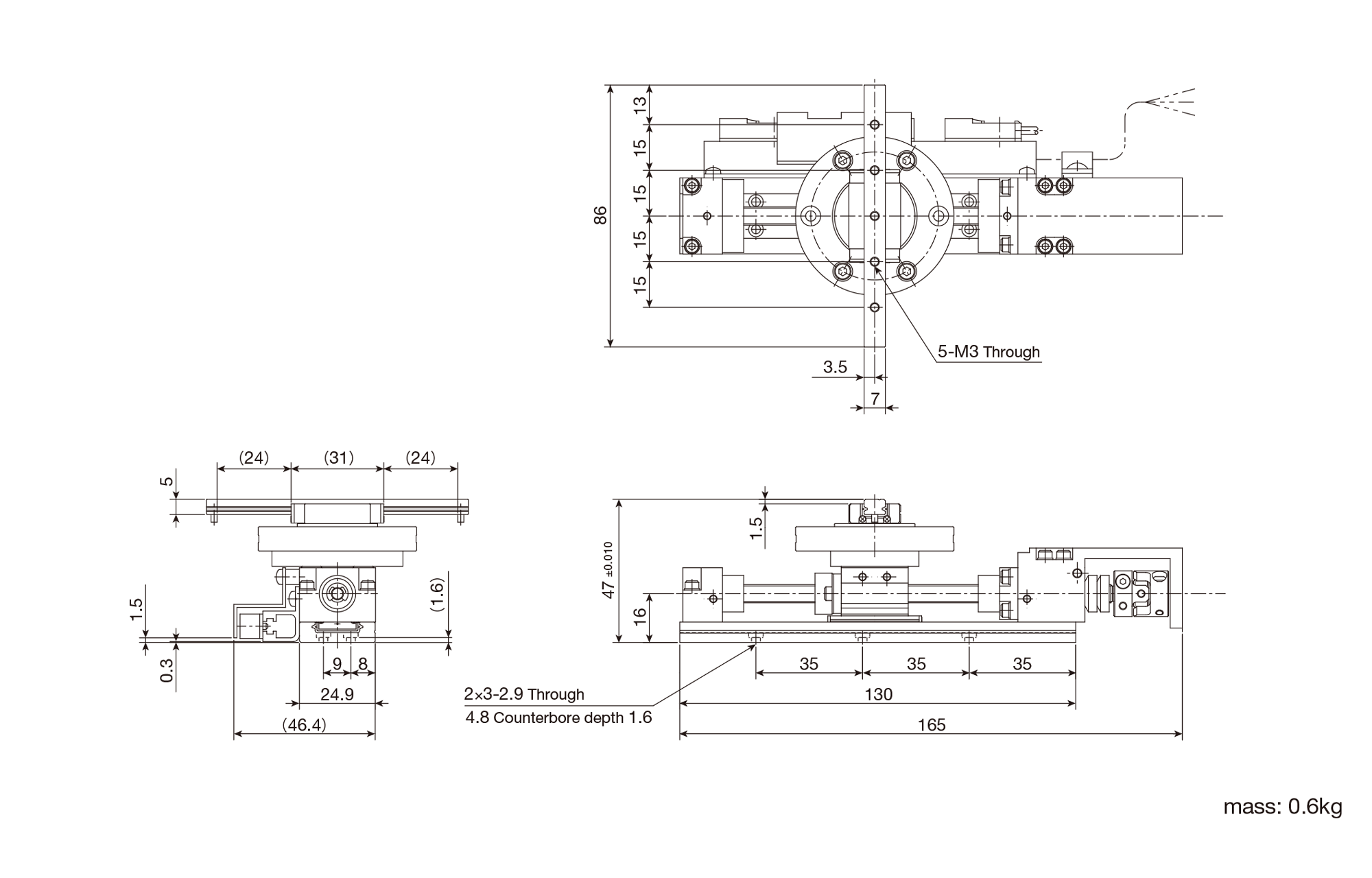

AM25 Without motor attachment and with ball screw

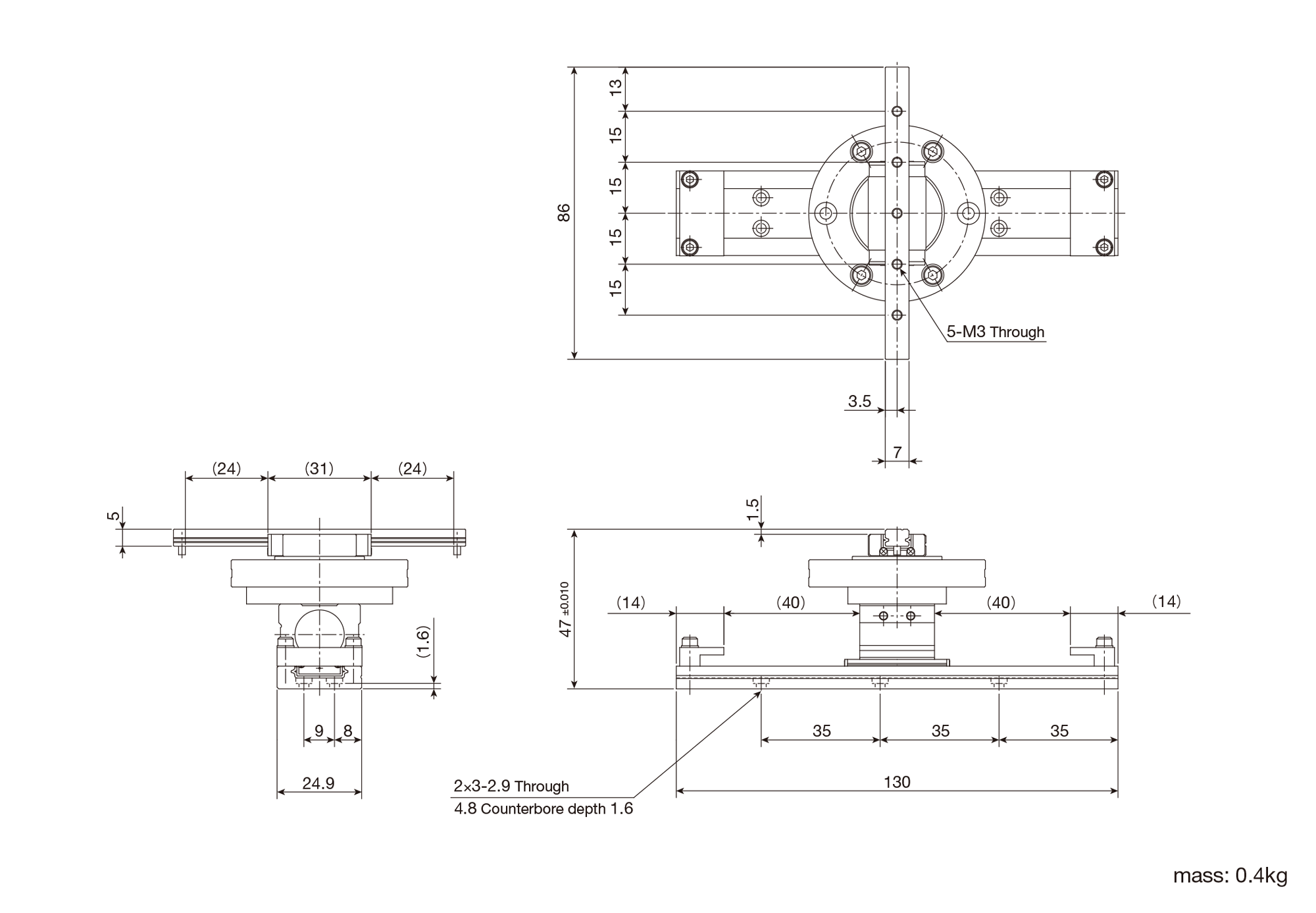

Without ball screw

Some products are not shown in the catalogue. Also, modifications can be made to meet your requirements. Please do not hesitate to make inquiries.

AM Features

Alignment Module AM is a positioning module developed for use as an alignment stage by combining the high rigidity Crossed Roller Bearing and Linear Way E with the Precision Positioning Table TU. Because the height dimensional tolerance is accurately managed within ±10μm, the alignment stage can be configured without adjusting the heights of respective alignment modules.
