Dimension

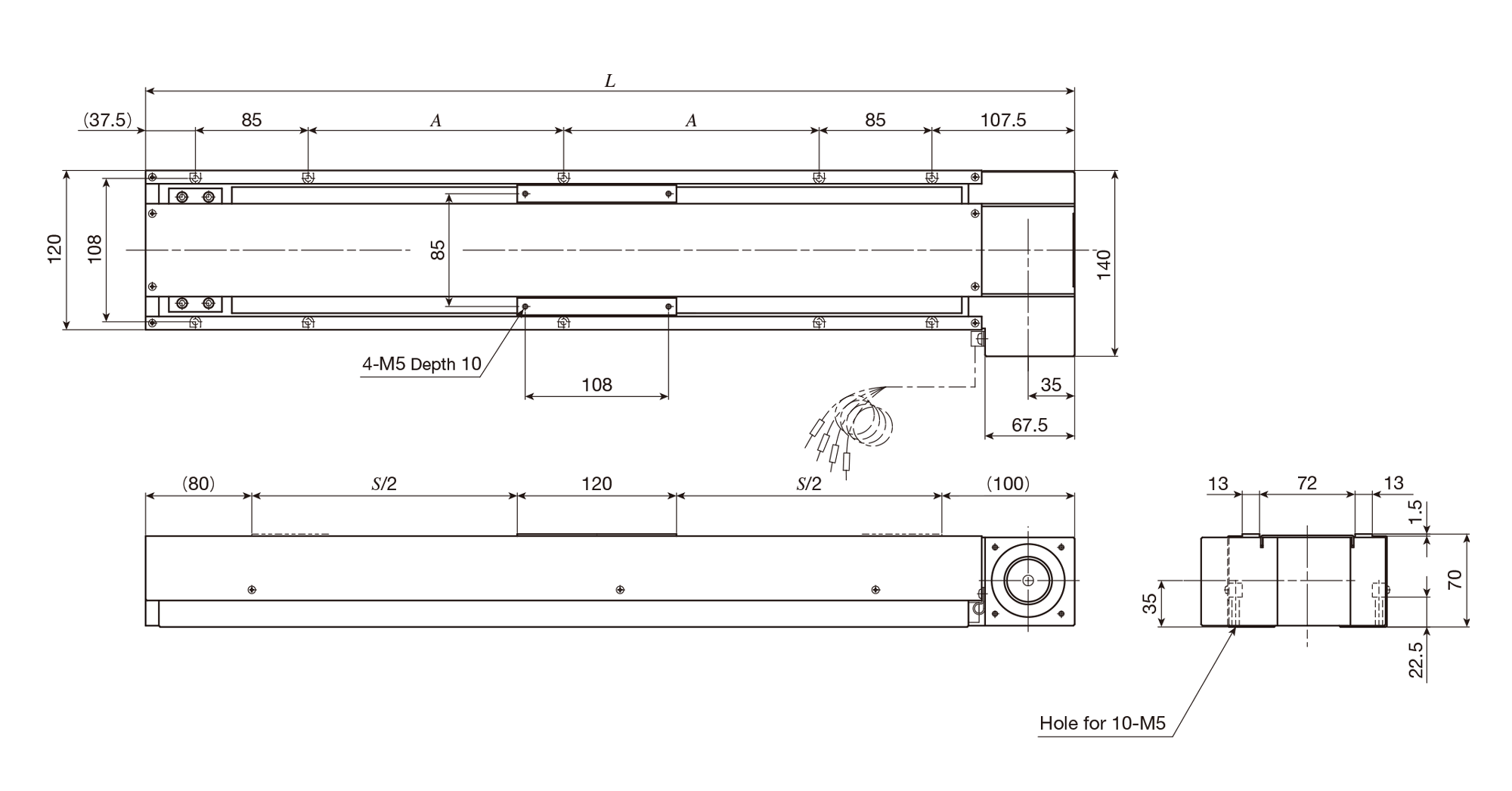

The dimensions of TSLB120 are shown below.

unit: mm

Identification number Stroke length
S		 Overall length
L		 Mounting holes of bed
A		 Mass（Ref.）
Kg
TSLB120－600 600 900 292.5 13
TSLB120－700 700 1000 342.5 14
TSLB120－800 800 1100 392.5 15
TSLB120－900 900 1200 442.5 16
TSLB120－1000 1000 1300 492.5 17

Some products are not shown in the catalogue. Also, modifications can be made to meet your requirements. Please do not hesitate to make inquiries.

LB Features

Precision Positioning Table LB is a positioning table capable of long stroke and high speed which uses a timing belt with high tensile steel core for the driving mechanism, and a high torque 5-phase stepper motor as the driving motor. Slide table and bed are made of a lightweight high-strength aluminum alloy. Also, two IKO Linear Ways are mounted in parallel, which provides stable and accurate running performance.
