Dimension

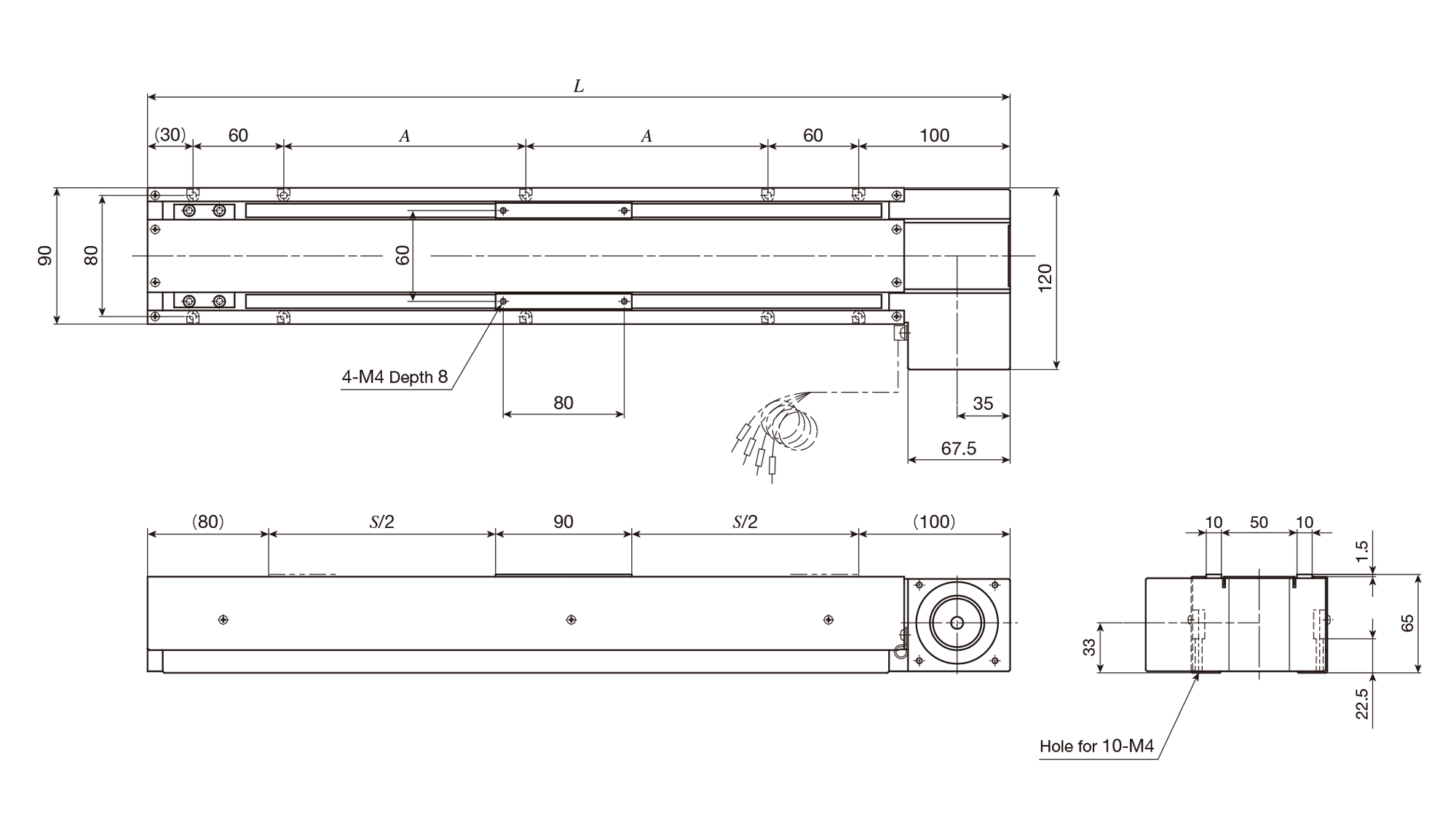

The dimensions of TSLB90 are shown below.

unit: mm

Identification number Stroke length
S		 Overall length
L		 Mounting holes of bed
A		 Mass（Ref.）
Kg
TSLB90－300 300 570 160 6.5
TSLB90－400 400 670 210 7.5
TSLB90－500 500 770 260 8.5
TSLB90－600 600 870 310 9.5

Some products are not shown in the catalogue. Also, modifications can be made to meet your requirements. Please do not hesitate to make inquiries.

LB Features

Precision Positioning Table LB is a positioning table capable of long stroke and high speed which uses a timing belt with high tensile steel core for the driving mechanism, and a high torque 5-phase stepper motor as the driving motor. Slide table and bed are made of a lightweight high-strength aluminum alloy. Also, two IKO Linear Ways are mounted in parallel, which provides stable and accurate running performance.
