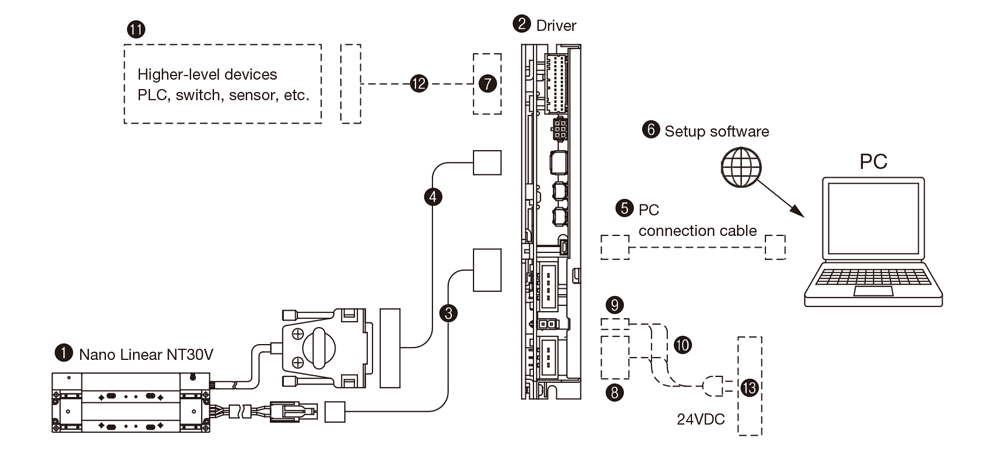

System configuration for NT30V

*Click the image to enlarge it.

No.	Name	Identification number
①	Nano Linear NT…V	NT30V
②	Driver	MVDLN2CSM	Pulse train
		MVDLN2CNL	RTEX
		MVDLN2CBL	EtherCAT
③	Motor extension cord	TAE20X5-AM03
④	Encoder extension cord	TAE20W9-EC02
⑤	PC connection cable	USB mini B cable (this must be provided by the customer).
⑥	Setup software	Download PANATERM from the Panasonic Corporation website.
⑦	Connectors for input/output signal	TE Connectivity Japan G.K. 1-1827863-4 (housing) and 1827587-2 (contact) (this must be provided by the customer).
⑧	Power supply connector (XA-1)	JST Mfg. Co., Ltd. F31FSS-03V-KX (housing) and SF3F-41GF-P2.0 (contact) (this must be provided by the customer).
⑨	Power supply connector (XA-2)	Molex Japan Co., Ltd. 5557-02R-210 (housing) and 5556-PBGSPL (contact) (this must be provided by the customer).
⑩	Power cord	This must be provided by the customer.
⑪	Higher-level device
⑫	Higher-level device connection cord
⑬	24VDC power supply
