System coifiguration configuration

A dedicated driver is available for each type of NT55V. The system configuration varies depending on the driver used.The system configuration for each driver is shown below.

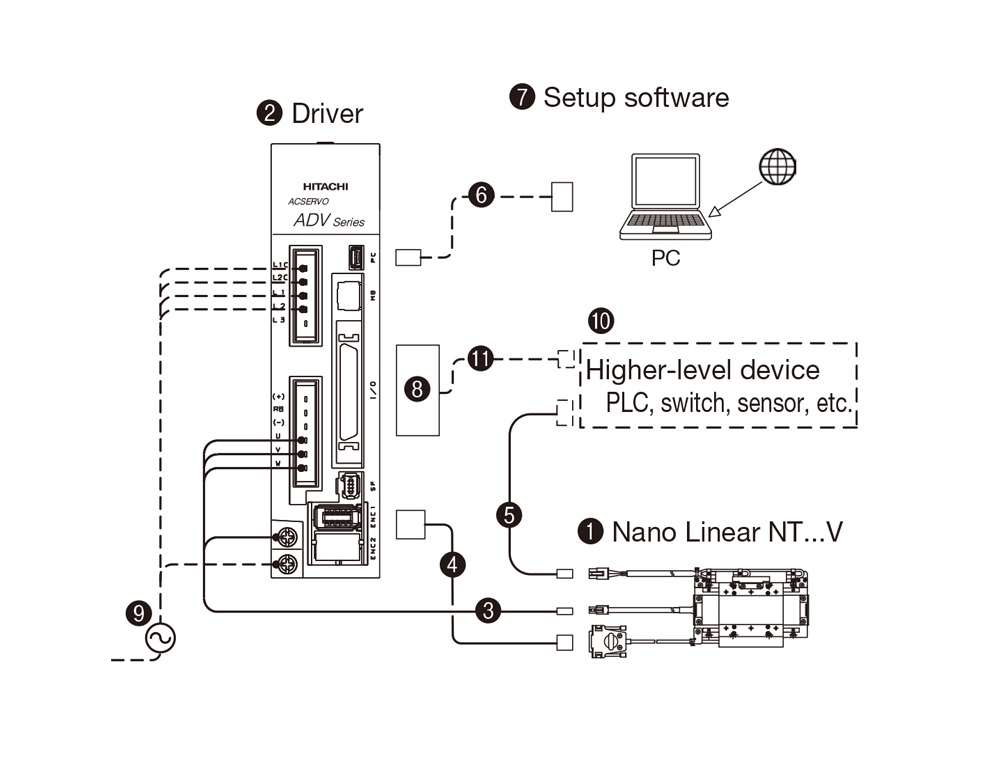

System configuration for NT55V with driver ADVA

*Click the image to enlarge it.

No. Name Model and size
Motor extension cord
(3m)(1)
TAE20V3-AM03
Encoder extension cord
(2m)(1)
TAE20V4-EC02
Sensor extension cord(2) TAE10V8-LC□□
PC connection cable USB mini B cable
This must be prepared by
customer.
Setup software ProDriveNext
Please download from the
official website
of Hitachi Industrial
Equipment Systems Co., Ltd.
I/O connector TAE20R5-CN(3)
Power cord This must be prepared by
customer.
Higher-level device
I/O connector connection
cable
Notes(1) For specific cord length, please contact IKO.
    (2) The lengths of the sensor extension cord is specified in the fields of □□ located at the end of the identification number with a length from 3 to 10m in units of 1m.
    (3) I/O connector TAE20R5-CN is a combined product of 10150-3000PE (connector) and 10350-52F0-008 (cover) from 3M Japan Limited.

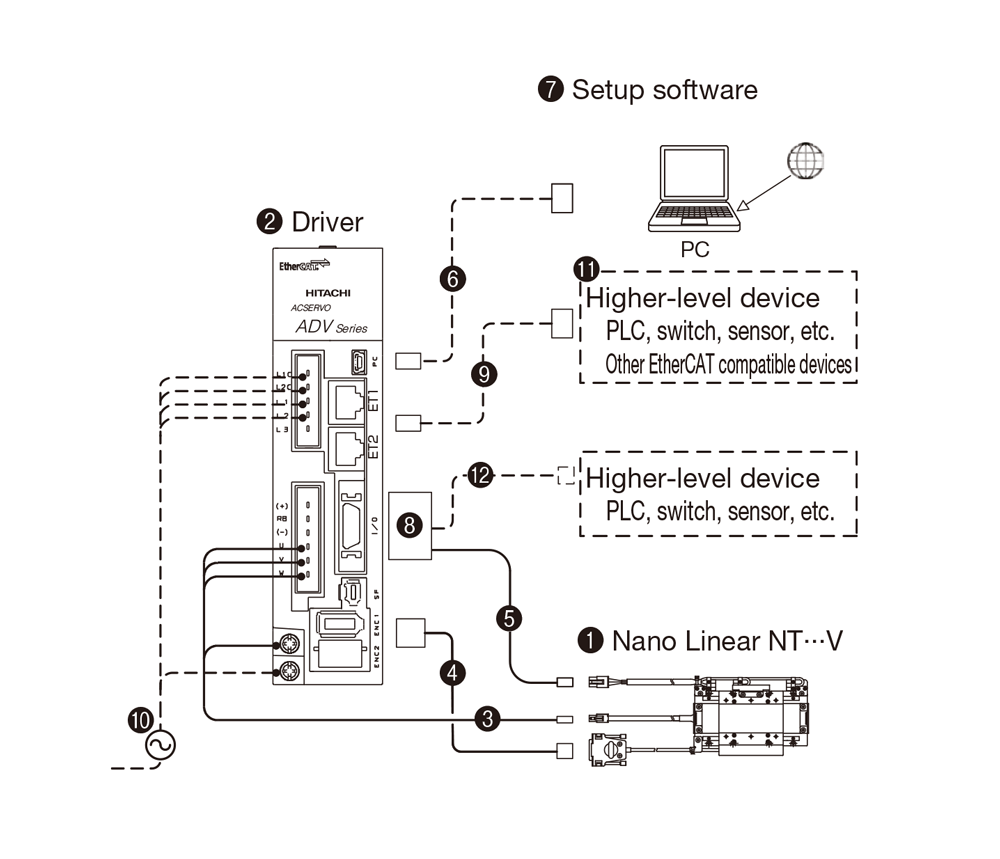

System configuration for NT55V with driver ADVA…EC

*Click the image to enlarge it.

No. Name Model and size
Motor extension cord
(3m)(1)
TAE20V3-AM03
Encoder extension cord
(2m)(1)
TAE20V4-EC02
Sensor extension cord(2) TAE10V8-LC□□
PC connection cable USB mini B cable
This must be prepared by
customer.
Setup software ProDriveNext
Please download from the official
website of Hitachi Industrial
Equipment Systems Co., Ltd.
I/O connector TAE20V5-CN(3)
Ethernet cable This must be prepared by
customer.
Power cord
Higher-level device
I/O connector connection
cable
Notes(1) For specific cord length, please contact IKO.
    (2) The lengths of the sensor extension cord is specified in the fields of □□ located at the end of the identification number with a length
    (3) I/O connector TAE20V5-CN is a combined product of 10120-3000PE (connector) and 10320-52F0-008 (cover) from 3M Japan
Limited.

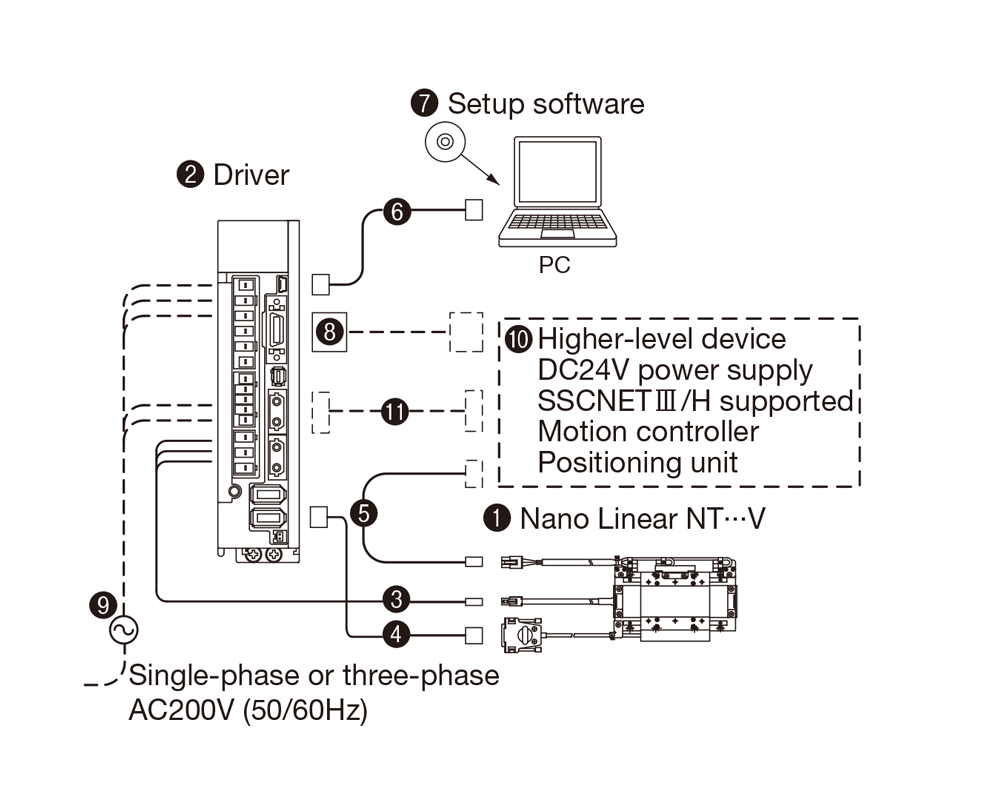

System configuration for NT55V with driver MR-J4-10B (SSCNET Ⅲ/H compatible)

*Click the image to enlarge it.

No. Name Model and size
Motor extension cord
(3m)(1)
TAE20V3-AM03
Encoder extension cord
(2m)(1)
TAE20V4-EC02
Sensor extension cord(2) TAE10V8-LC□□
PC connection cable(3m) MR-J3USBCBL3M
Setup software SW1DNC-MRC2-J
I/O connection connector MR-CCN1(3)
Power cord This must be prepared by
customer.
Higher-level device(4)
SSCNETⅢ/H connection cable
Notes(1) For specific cord length, please contact IKO.
    (2) The lengths of the sensor extension cord is specified in the fields of □□ located at the end of the identification number with a length from 3 to 10m in units of 1m.
    (3) Connectors for input/output connection MR-CCN1 is a combined product of 10120-3000PE (connector) and 10320-52F0-008 (cover) from 3M Japan Limited.
    (4) The higher-level devices are a motion controller, positioning unit and DC24V power supply ready for SSCNETⅢ/H from Mitsubishi Electric Corporation.

Some products are not shown in the catalogue. Also, modifications can be made to meet your requirements. Please do not hesitate to make inquiries.

Pick Up


NT・・・V Features

IKO Nano Linear NT is a compact linear motor tablewith excellent functionality. This is achieved via an optical linear encoder (connected to the movable steel table) and stator coil and head for said linear encoder connected to the steel bed. For the guided portion of the table, a C-Lube Linear Way L was used, which has a maintenance-free life of 5 years, or 20,000 km, contributing to the reduction of maintenance time. By adopting high performance neodymium magnets for the rotor, a maximum thrust of 36N is generated, and high-speed, high-response positioning is made possible. Furthermore, since the mechanical contact portion uses only a Linear Way, high cleanliness is realized.
Nano Linear NT is most suitable as a compact positioning mechanism for applications such as semiconductor / liquid crystal related manufacturing equipment, inspection instruments, and other assembly equipment which require a clean environment.
