Specification
The performance of PD･･･S is shown in the table below.
PD･･･S performance
| Item | Model and size |
|---|---|
| PD70S | |

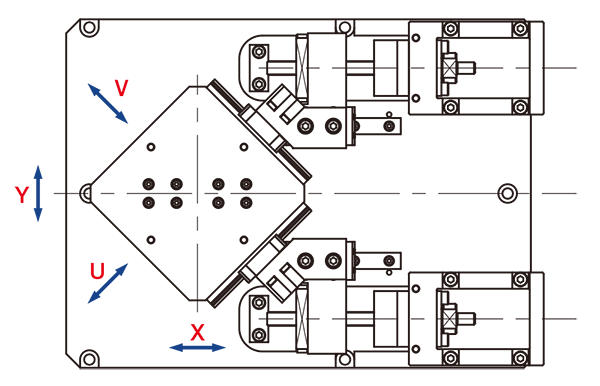

| X/Y directions effective stroke length mm | ±10 |
| U/V directions effective stroke length mm | ±7 |
| X/Y directions maximum speed mm/s（1） | 50 |
| U/V directions maximum speed mm/s（1） | 35 |
| Maximum carrying mass kg（2） | 5 |
| Positioning repeatability mm | ±0.002 |
| Notes(1) | Values when the motor rotational speed is 3000rpm. To measure the practical maximum speed, it is required to consider operation patterns based on the motor used and load conditions. |
| (2) | The mass is with the table equipped at the center position. |
Some products are not shown in the catalogue. Also, modifications can be made to meet your requirements. Please do not hesitate to make inquiries.
