Dimension

The dimensions of TZ200H are shown below.

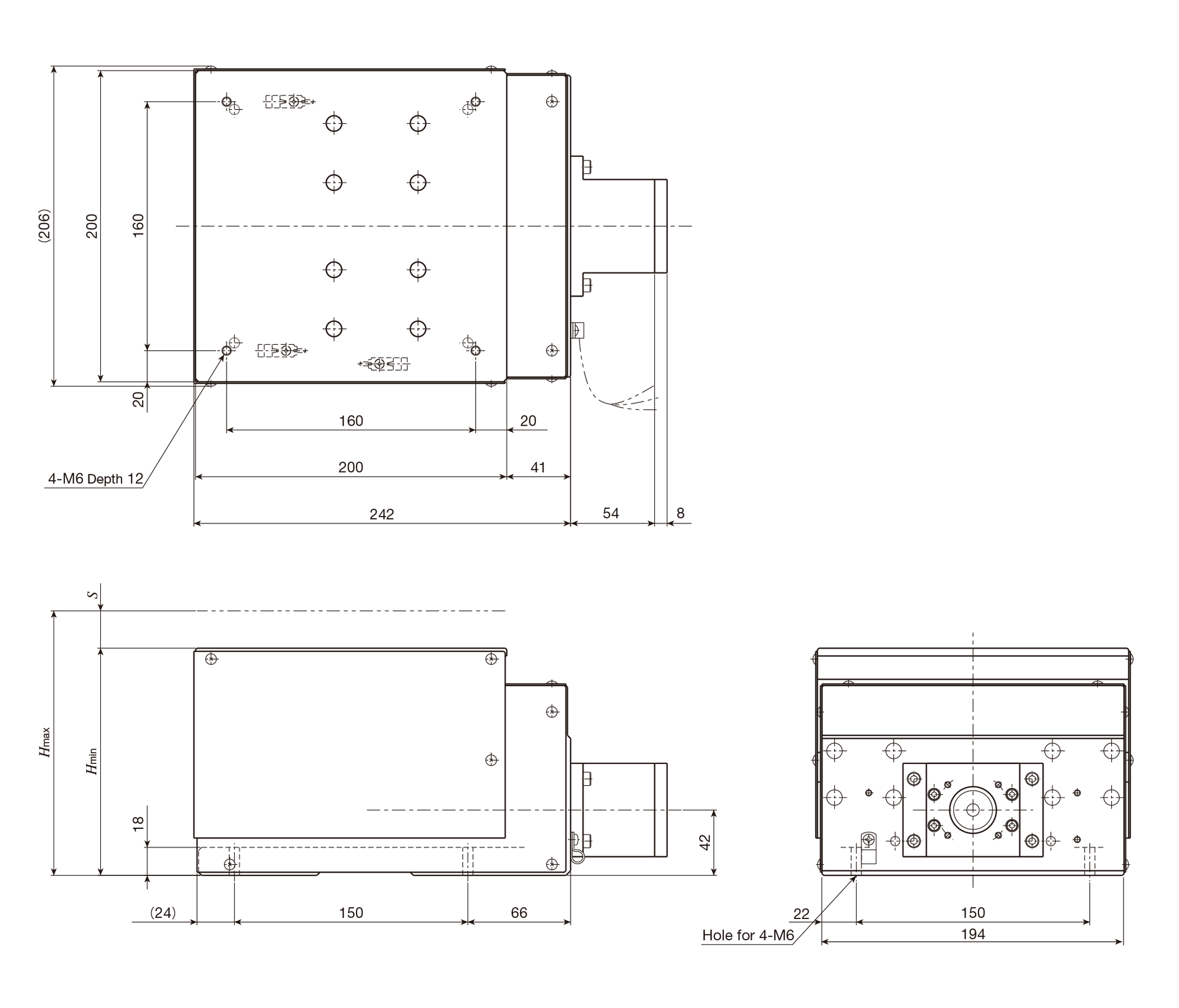

without linear encoder

unit: mm

Identification
number
Wedge reduction
ratio
Mass (Ref.)
Kg
Height Stroke length
S
Hmin
(CW limit position)
Hmax
(CCW limit position)
TZ200H-2 1:2 13.2 146 170 24
TZ200H-4 1:4 12.2 132 144 12
TZ200X-2 1:2 13.3 146 170 24
TZ200X-4 1:4 12.3 132 144 12

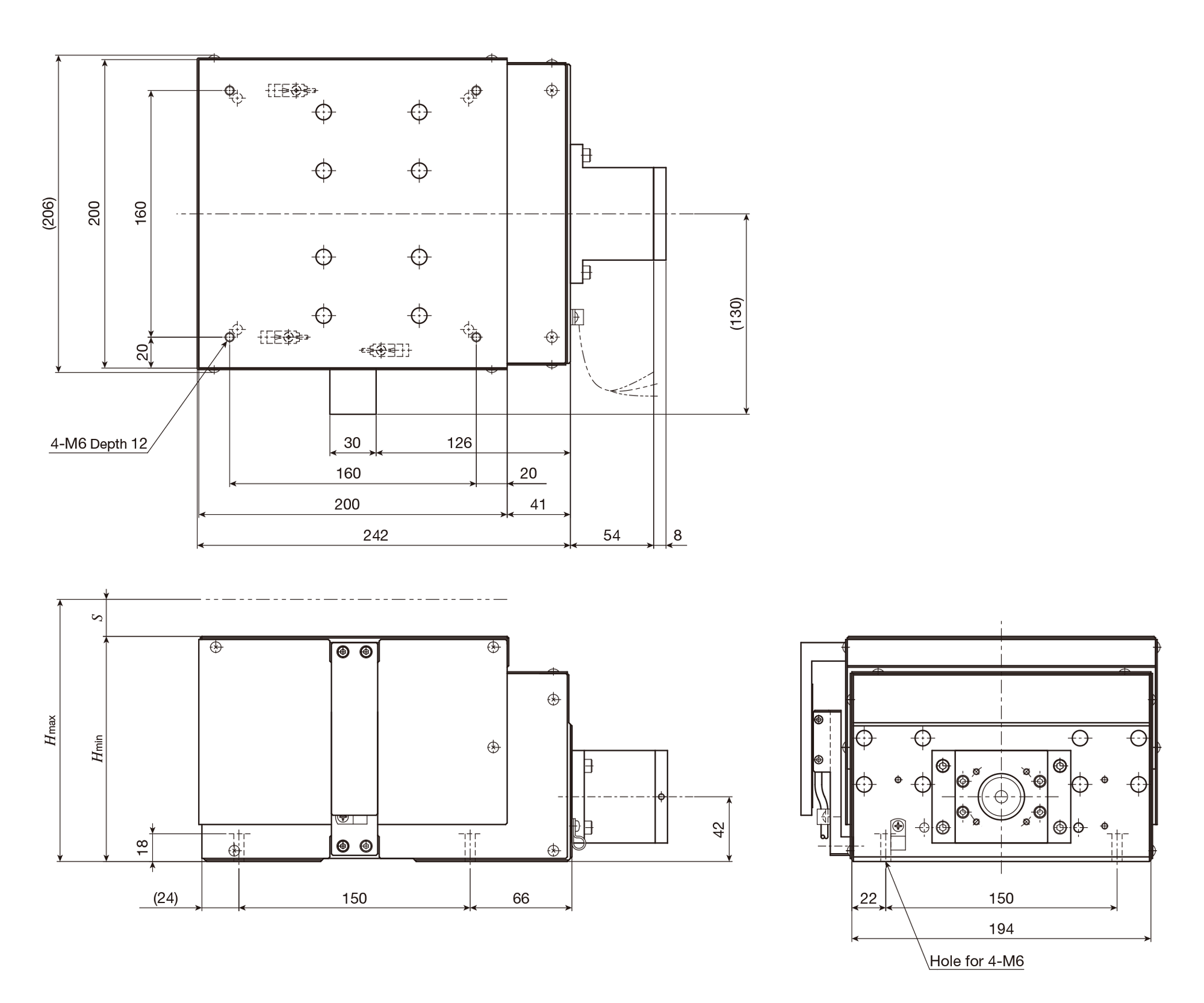

with linear encoder

unit: mm

Identification
number
Wedge reduction
ratio
Mass (Ref.)
Kg
Height Stroke length
S
Hmin
(CW limit position)
Hmax
(CCW limit position)
TZ200H-2 1:2 14.2 146 170 24
TZ200H-4 1:4 13.2 132 144 12
TZ200X-2 1:2 14.3 146 170 24
TZ200X-4 1:4 13.3 132 144 12

Some products are not shown in the catalogue. Also, modifications can be made to meet your requirements. Please do not hesitate to make inquiries.

TZ Features

IKO Precision Elevating Table TZ performs precision positioning in the vertical direction by using a wedge mechanism, developed using IKO Linear Ways, which achieves both high accuracy and high rigidity while maintaining a compact size.
