Dimension
The dimensions of TZ200X are shown below.

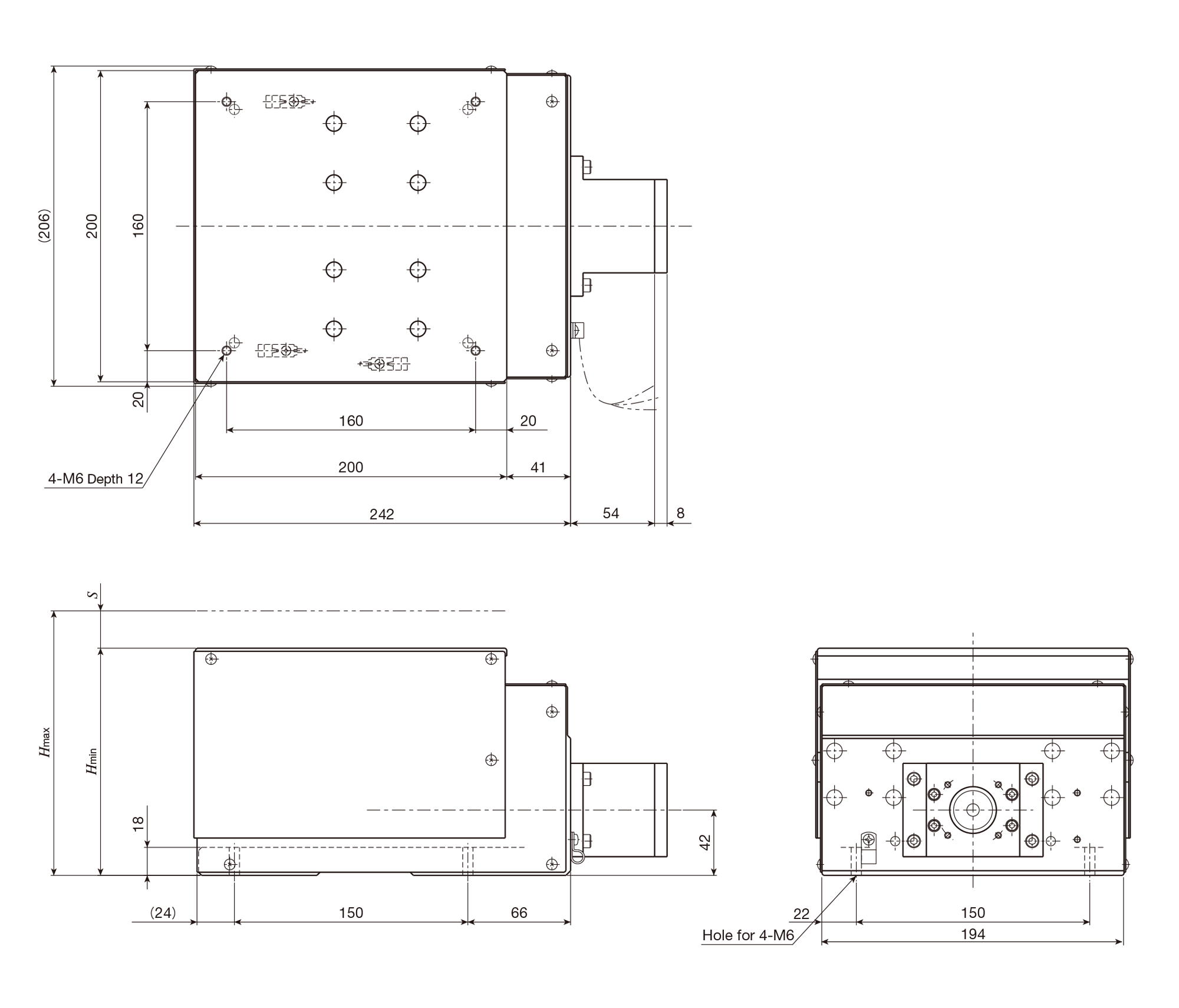

without linear encoder
unit: mm
| Identification number |
Wedge reduction ratio |
Mass (Ref.) Kg |
Height | Stroke length S |
|
|---|---|---|---|---|---|
| Hmin （CW limit position） |
Hmax （CCW limit position） |
||||
| TZ200H-2 | 1:2 | 13.2 | 146 | 170 | 24 |
| TZ200H-4 | 1:4 | 12.2 | 132 | 144 | 12 |
| TZ200X-2 | 1:2 | 13.3 | 146 | 170 | 24 |
| TZ200X-4 | 1:4 | 12.3 | 132 | 144 | 12 |

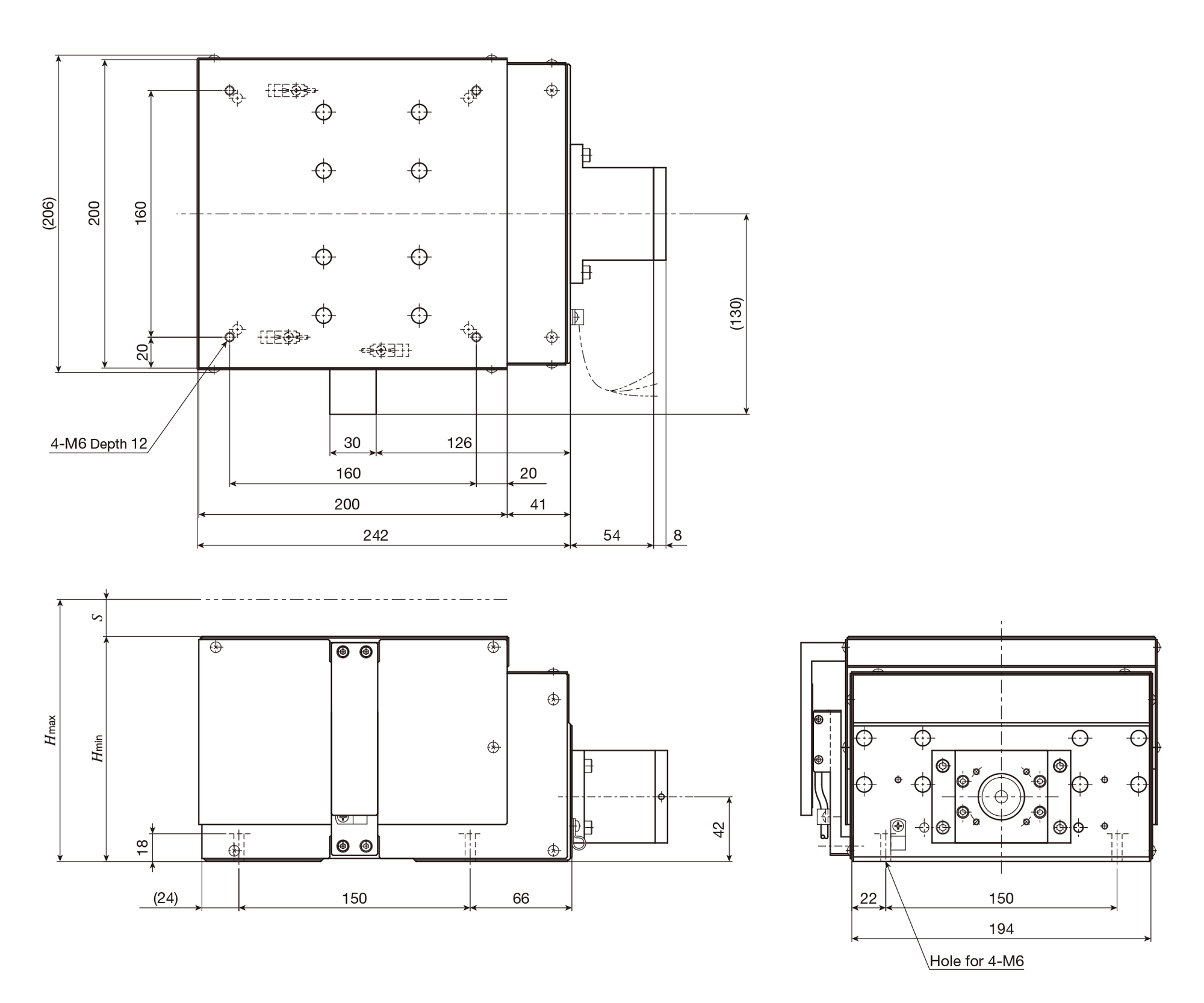

with linear encoder
unit: mm
| Identification number |
Wedge reduction ratio |
Mass (Ref.) Kg |
Height | Stroke length S |
|
|---|---|---|---|---|---|
| Hmin （CW limit position） |
Hmax （CCW limit position） |
||||
| TZ200H-2 | 1:2 | 14.2 | 146 | 170 | 24 |
| TZ200H-4 | 1:4 | 13.2 | 132 | 144 | 12 |
| TZ200X-2 | 1:2 | 14.3 | 146 | 170 | 24 |
| TZ200X-4 | 1:4 | 13.3 | 132 | 144 | 12 |
Some products are not shown in the catalogue. Also, modifications can be made to meet your requirements. Please do not hesitate to make inquiries.
