TSL120 Dimension｜Specification｜IKO Precision Positioning Table L TSL･･･M

Dimension

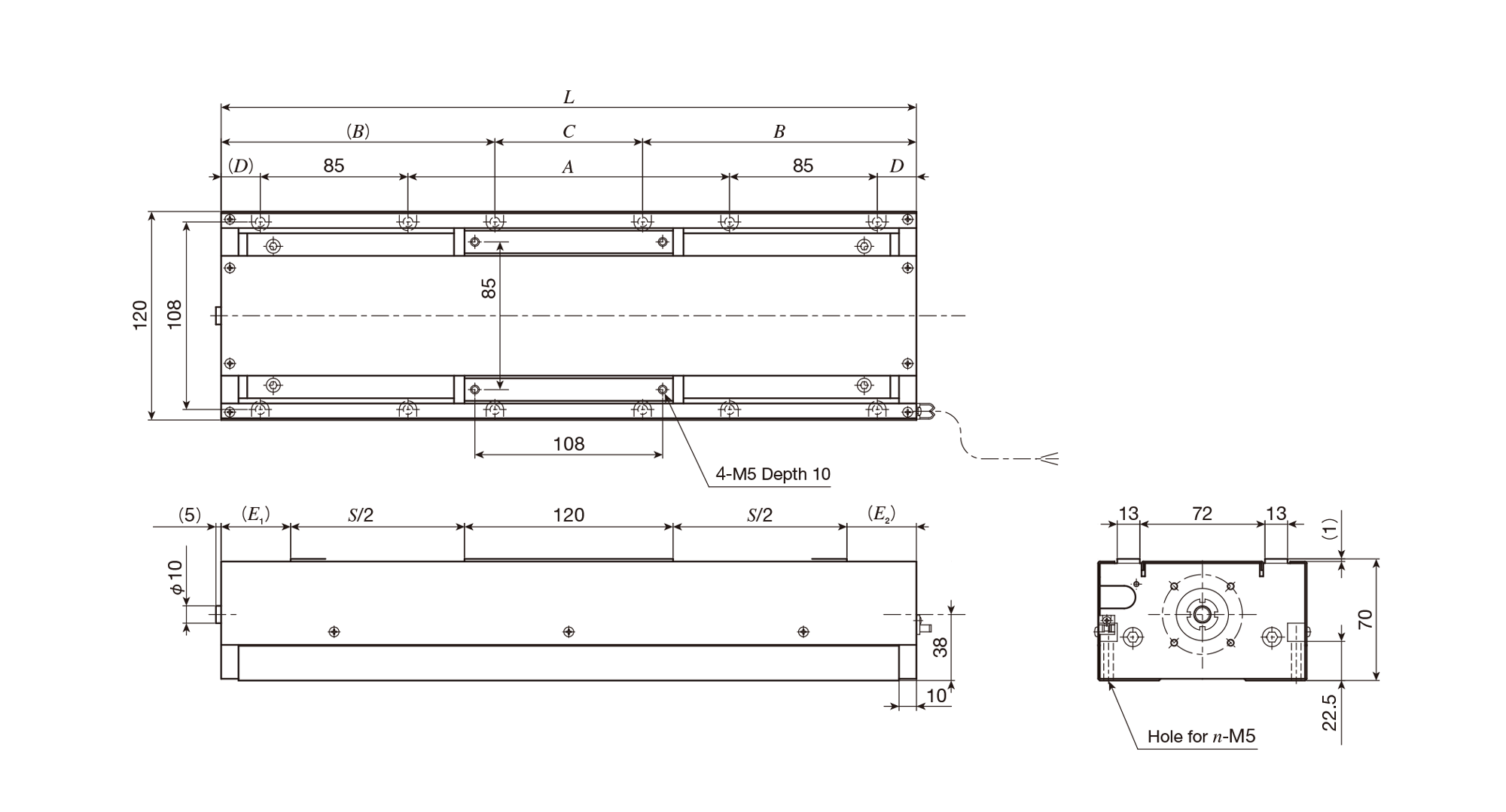

The dimensions of TSL120M are shown below.

unit: mm

Identification number	Stroke length			Dimensions of table						Mass （Ref.） Kg
	S	E1	E2	Overall length	Mounting holes of bed
	S	E1	E2	L	A	B	C	D	n
TSL120M-100	100	40	40	300	85	107.5	85	22.5	8	6.1
TSL120M-150	150			350	135	132.5	85	22.5	12	6.6
TSL120M-200	200			400	185	157.5	85	22.5	12	7.1
TSL120M-250	250			450	235	182.5	85	22.5	12	7.6
TSL120M-300	300			500	255	207.5	85	37.5	12	8.1
TSL120M-400	400			600	355	207.5	185	37.5	12	9.1
TSL120M-500	500			700	455	207.5	285	37.5	12	10.1
TSL120M-600	600			800	555	207.5	385	37.5	12	11.1

Product Related Inquiries

Some products are not shown in the catalogue. Also, modifications can be made to meet your requirements. Please do not hesitate to make inquiries.

Precision Positioning Table L Features

Precision Positioning Table L is a light weight, long stroke type positioning table in which two rows of high accuracy, high rigidity type IKO Linear Ways are incorporated on a slide table and bed made of high-strength aluminum alloy together with a precision ball screw for the drive mechanism. Parallel arrangement of two sets of Linear Ways achieves stability as well as high running and positional accuracy in addition to high load capacity. Many variations in table sizes and stroke lengths are available. Dedicated XY brackets are also available for this series. Therefore, an assembly such as an X-Y robot can be readily constructed to suit the requirements of each application. With IKO's C-Lube technology integrated in the linear ways, the maintenance work including regreasing of the Linear Ways and the ball screw can be greatly reduced.
This series is widely used and its excellent performance has been verified as a high accuracy positioning mechanism for assembly systems, working machines, measuring instruments, etc.
