TSL90 Dimension｜Specification｜IKO Precision Positioning Table L TSL･･･M

Dimension

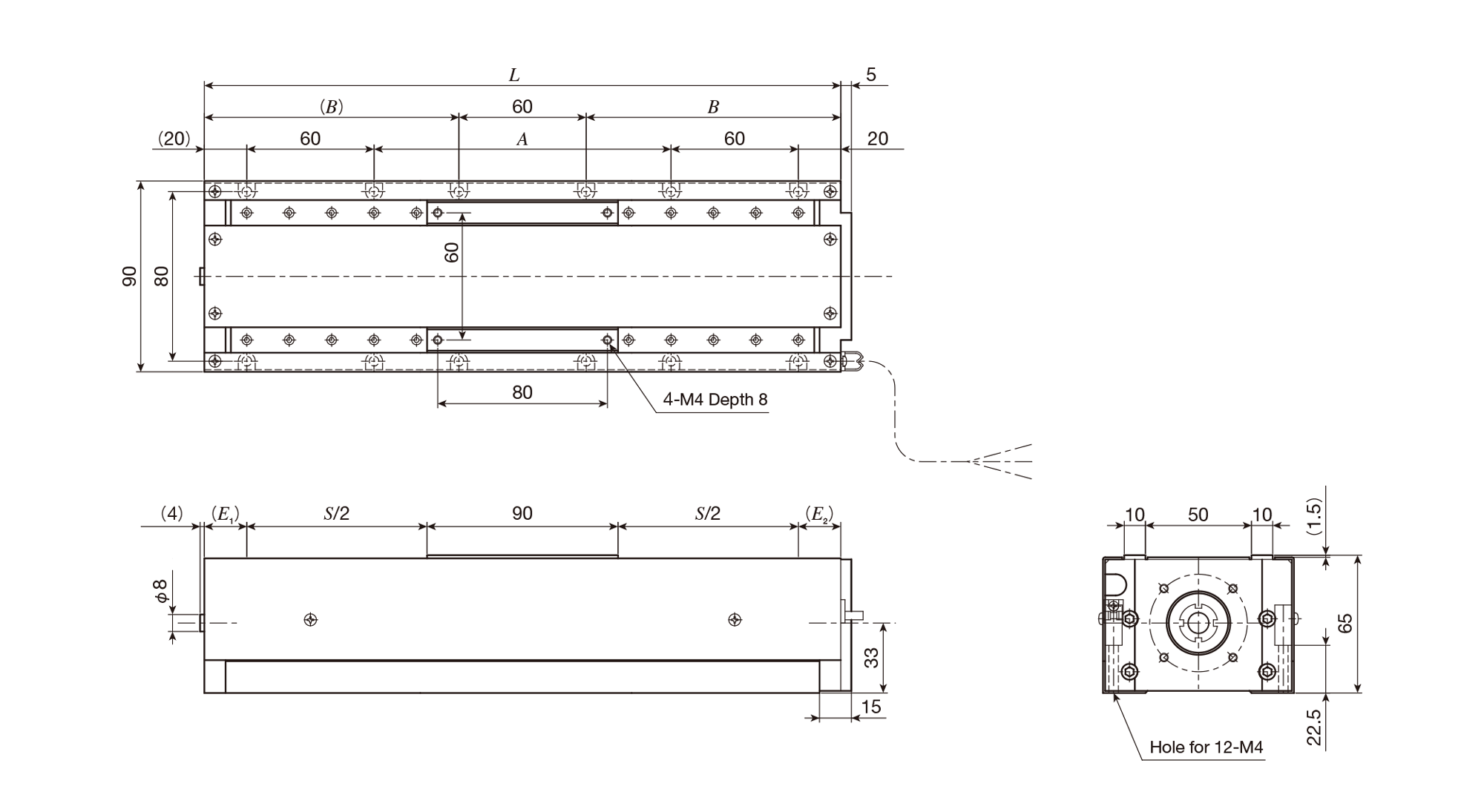

The dimensions of TSL90M are shown below.

unit: mm

Identification number	Stroke length			Dimensions of table			Mass（Ref.） Kg
	S	E1	E2	Overall length	Mounting holes of bed
	S	E1	E2	L	A	B
TSL90M- 50	50	30	30	200	40	70	2.8
TSL90M-100	100			250	90	95	3.2
TSL90M-150	150			300	140	120	3.5
TSL90M-200	200			350	190	145	3.9
TSL90M-250	250			400	240	170	4.2
TSL90M-300	300			450	290	195	4.6

Product Related Inquiries

Some products are not shown in the catalogue. Also, modifications can be made to meet your requirements. Please do not hesitate to make inquiries.

Precision Positioning Table L Features

Precision Positioning Table L is a light weight, long stroke type positioning table in which two rows of high accuracy, high rigidity type IKO Linear Ways are incorporated on a slide table and bed made of high-strength aluminum alloy together with a precision ball screw for the drive mechanism. Parallel arrangement of two sets of Linear Ways achieves stability as well as high running and positional accuracy in addition to high load capacity. Many variations in table sizes and stroke lengths are available. Dedicated XY brackets are also available for this series. Therefore, an assembly such as an X-Y robot can be readily constructed to suit the requirements of each application. With IKO's C-Lube technology integrated in the linear ways, the maintenance work including regreasing of the Linear Ways and the ball screw can be greatly reduced.
This series is widely used and its excellent performance has been verified as a high accuracy positioning mechanism for assembly systems, working machines, measuring instruments, etc.
