Dimension

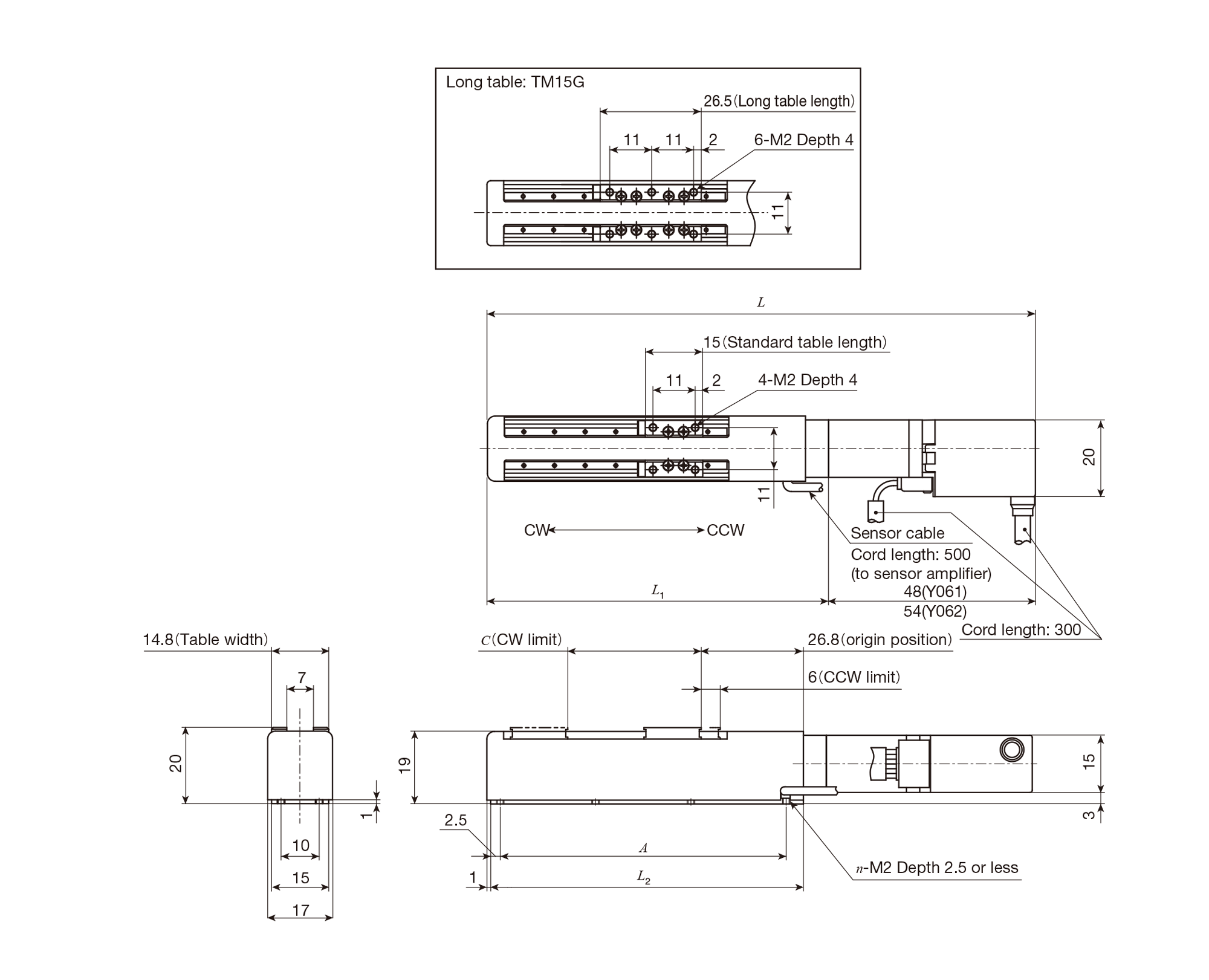

The dimensions of TM15 are shown below.
Specifications of AC servomotor
Unit: mm
| Model and size | Stroke length | Dimensions of table | Mass（1） （Ref.） Kg |
||||||
|---|---|---|---|---|---|---|---|---|---|
| Effective stroke length（2） |
CW limit position C |
Overall length L | L1 | L2 | Mounting holes of bed | ||||
| Y061 | Y062 | A（Number of units x pitch） |
n | ||||||
| TM15 -20 | 20 | 16 | 117 | 123 | 69 | 62 | 50(2x25) | 6 | 0.15 |
| TM15 -40 | 40 | 36 | 137 | 143 | 89 | 82 | 75(3x25) | 8 | 0.16 |
| TM15 -60 | 60 | 56 | 157 | 163 | 109 | 102 | 96(4x24) | 10 | 0.17 |
| TM15G-10 | 10 | 4.5 | 117 | 123 | 69 | 62 | 50(2x25) | 6 | 0.16 |
| TM15G-30 | 30 | 24.5 | 137 | 143 | 89 | 82 | 75(3x25) | 8 | 0.17 |
| TM15G-50 | 50 | 44.5 | 157 | 163 | 109 | 102 | 96(4x24) | 10 | 0.18 |
| Notes（1） | Represents value when Y061 is specified. It will be 0.01 kg heavier when Y062 is specified. |
| （2） | The sensor position cannot be adjusted. The effective stroke length indicates the stroke length that can be surely secured between the limit sensors. |
| Remark: | A resin table cover is used but a stainless steel table cover can also be manufactured. If needed, please contact IKO. |

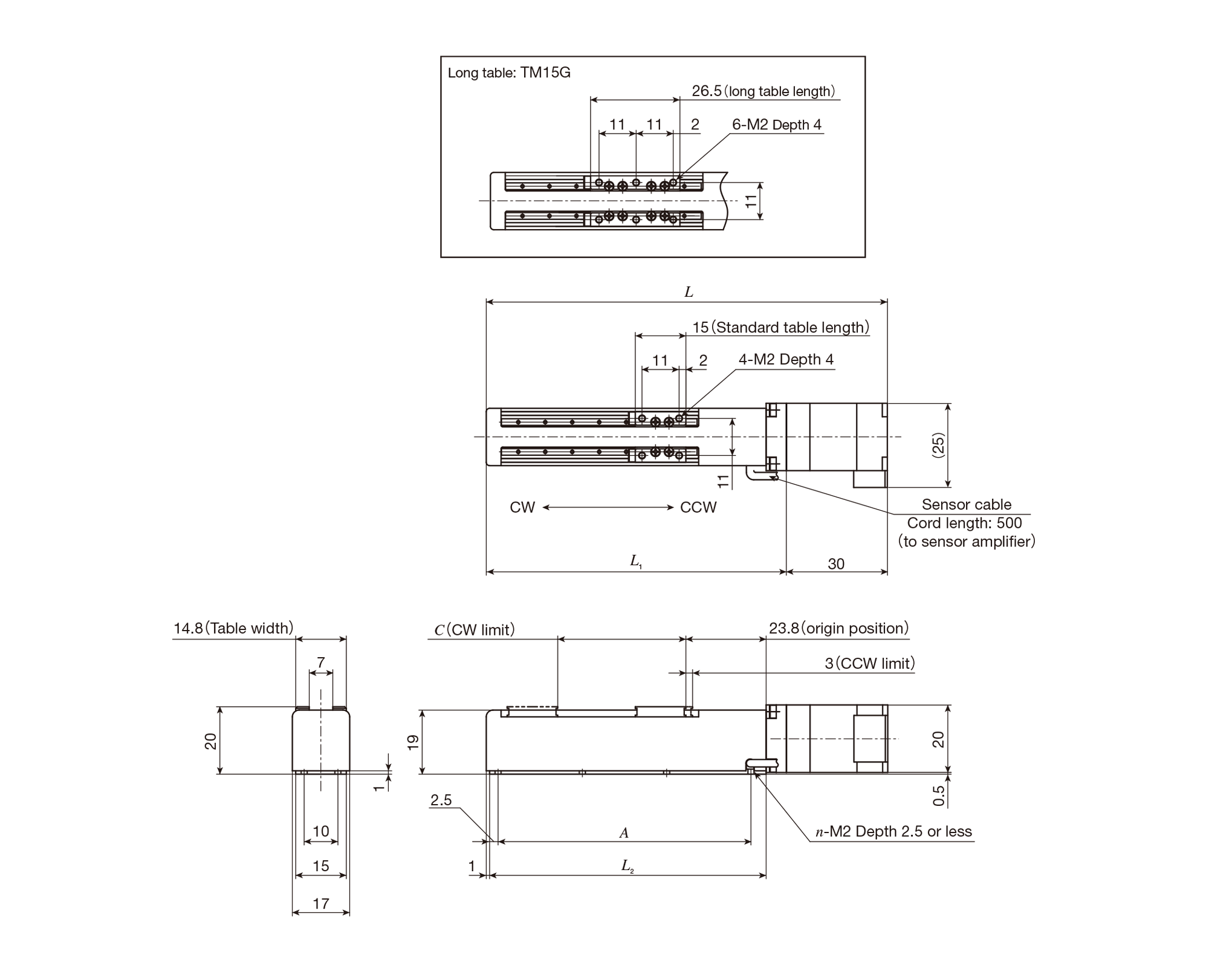

Specifications of stepper motor
Unit: mm
| Model and size | Stroke length | Dimensions of table | Mass （Ref.） Kg |
|||||
|---|---|---|---|---|---|---|---|---|
| Effective stroke length（1） |
CW limit position C |
Overall length L | L1 | L2 | Mounting holes of bed | |||
| A（the number of holes×pitch） |
n | |||||||
| TM15 -20 | 20 | 19 | 99 | 69 | 62 | 50(2x25) | 6 | 0.15 |
| TM15 -40 | 40 | 39 | 119 | 89 | 82 | 75(3x25) | 8 | 0.16 |
| TM15 -60 | 60 | 59 | 139 | 109 | 102 | 96(4x24) | 10 | 0.17 |
| TM15G-10 | 10 | 7.5 | 99 | 69 | 62 | 50(2x25) | 6 | 0.16 |
| TM15G-30 | 30 | 27.5 | 119 | 89 | 82 | 75(3x25) | 8 | 0.17 |
| TM15G-50 | 50 | 47.5 | 139 | 109 | 102 | 96(4x24) | 10 | 0.18 |
| Note（1） | The sensor position cannot be adjusted. The effective stroke length indicates the stroke length that can be surely secured between the limit sensors. |
| Remark: | A resin table cover is used but a stainless table cover can also be manufactured. If needed, please contact IKO. |
Some products are not shown in the catalogue. Also, modifications can be made to meet your requirements. Please do not hesitate to make inquiries.
