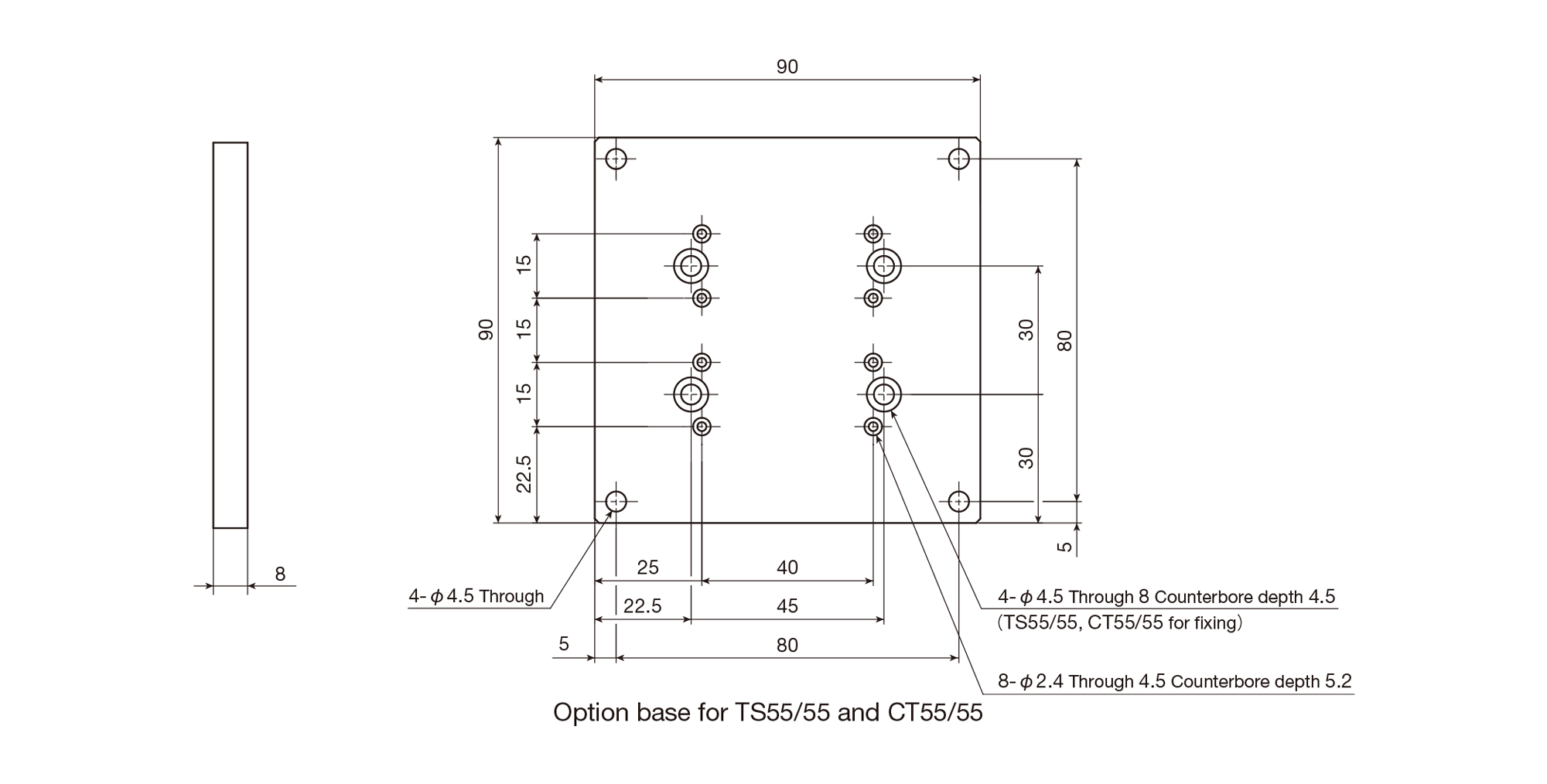

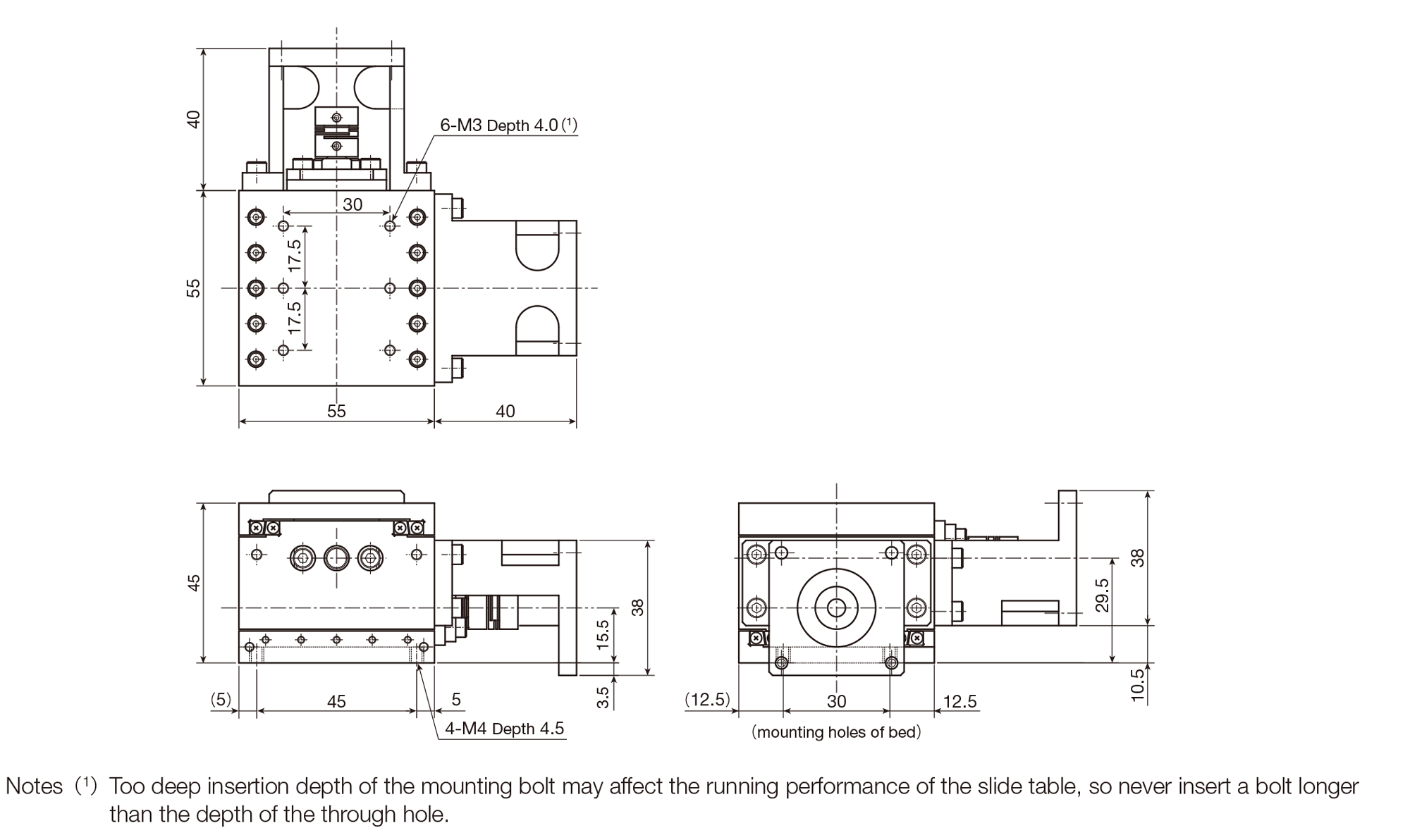

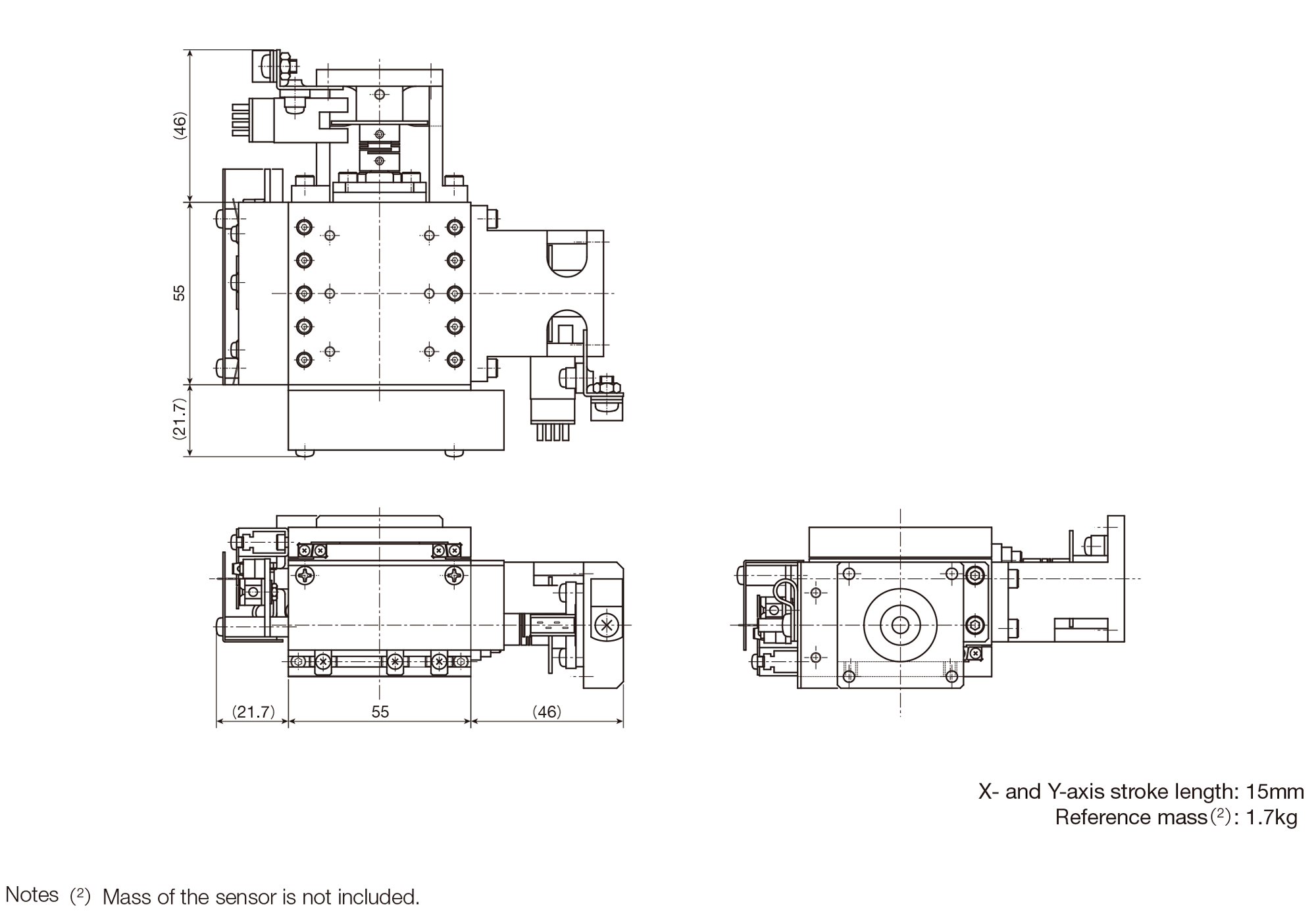

The dimensions of CT55/55 are shown below.
Some products are not shown in the catalogue. Also, modifications can be made to meet your requirements. Please do not hesitate to make inquiries.
TS/CT Compact Series Table is a positioning table which incorporates IKO's Crossed Roller Way, a long established precision type linear motion rolling guide. It is assembled in conjunction with a high rigidity and superior vibration-damping slide table and bed made of cast iron together with a precision ball screw as the drive mechanism. This table achieves a low sectional height, high reliability, and high accuracy by making the most of the features of the compact, high accuracy and high rigidity Crossed Roller Way. Compact Series TS/CT includes a single axis type and also a two axis type and is widely used in applications requiring high accuracy positioning such as precision measuring instruments and systems.
