The dimensions of TS260/350 are shown below.

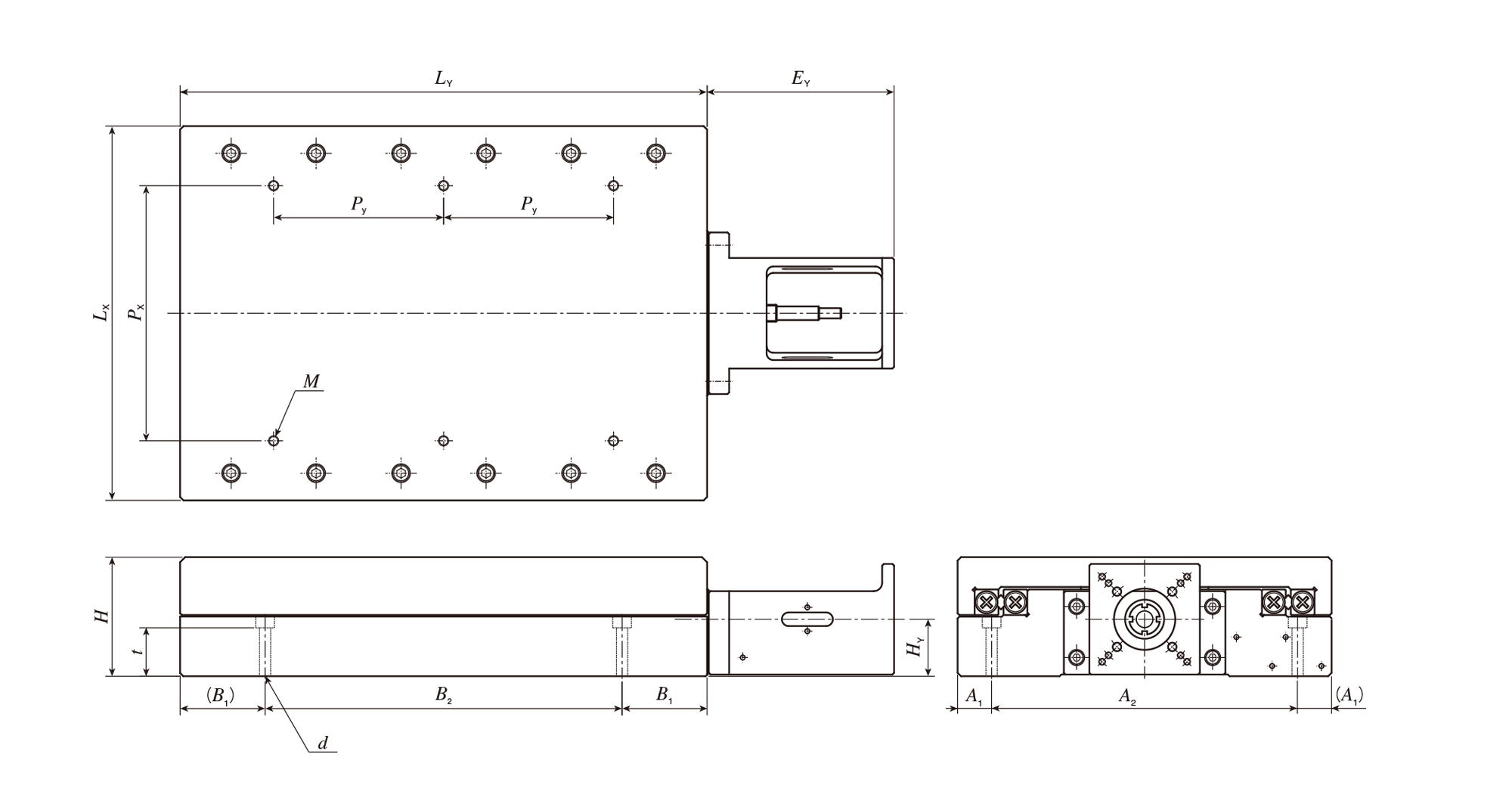

Specification without sensor

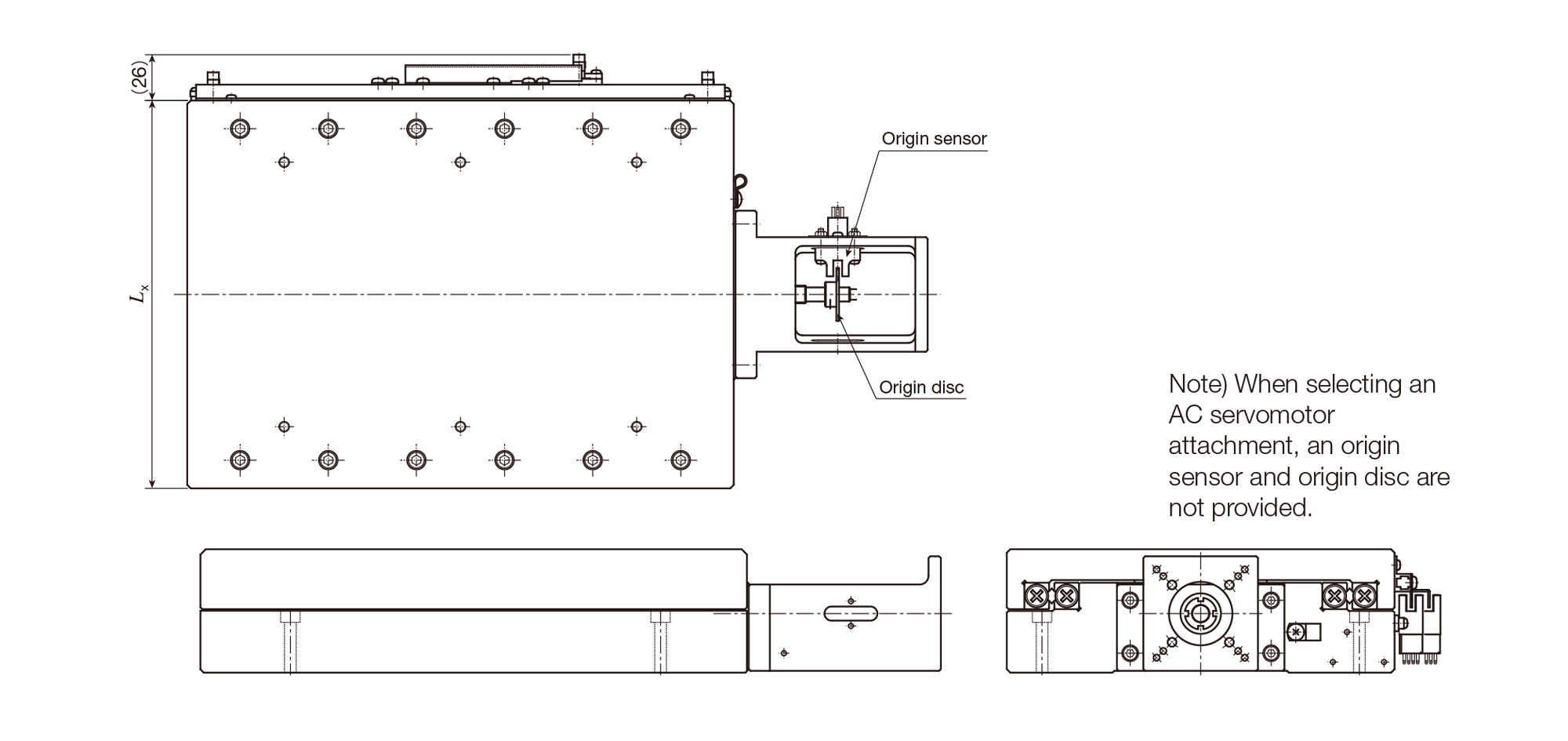

Specification with sensor

unit: mm

Identification number Dimensions of table Stroke length EY Height of shaft center
TS125/220(1) 125 220 60 120 71 31.5
TS220/310 220 310 70 180 110 33.5
TS260/350 260 350 100 250 120 47.5

Identification number Mounting bolt Bed mounting-related dimensions Reference mass(2)
M(3) PX PY d t A1 A2 B1 B2
TS125/220(1) 6-M5 depth 10 70 75 For 4-M5 29.6 12.5 100 20 180 11
TS220/310 6-M6 depth 12 150 100 For 4-M6 28.5 20 180 50 210 27
TS260/350 6-M6 depth 12 150 125 For 4-M8 45.4 22.5 215 50 250 48
Notes(1) The motor bracket is positioned 1.5mm higher than the upper surface of the table.
    (2) Mass of the sensor is not included.
    (3) Too deep insertion depth of the mounting bolt may affect the running performance of the slide table, so never insert a bolt longer than the depth of the through hole.

Some products are not shown in the catalogue. Also, modifications can be made to meet your requirements. Please do not hesitate to make inquiries.

TS・CT Features

TS/CT Compact Series Table is a positioning table which incorporates IKO's Crossed Roller Way, a long established precision type linear motion rolling guide. It is assembled in conjunction with a high rigidity and superior vibration-damping slide table and bed made of cast iron together with a precision ball screw as the drive mechanism. This table achieves a low sectional height, high reliability, and high accuracy by making the most of the features of the compact, high accuracy and high rigidity Crossed Roller Way. Compact Series TS/CT includes a single axis type and also a two axis type and is widely used in applications requiring high accuracy positioning such as precision measuring instruments and systems.
