Dimension

The dimensions of TS125/125 are shown below.

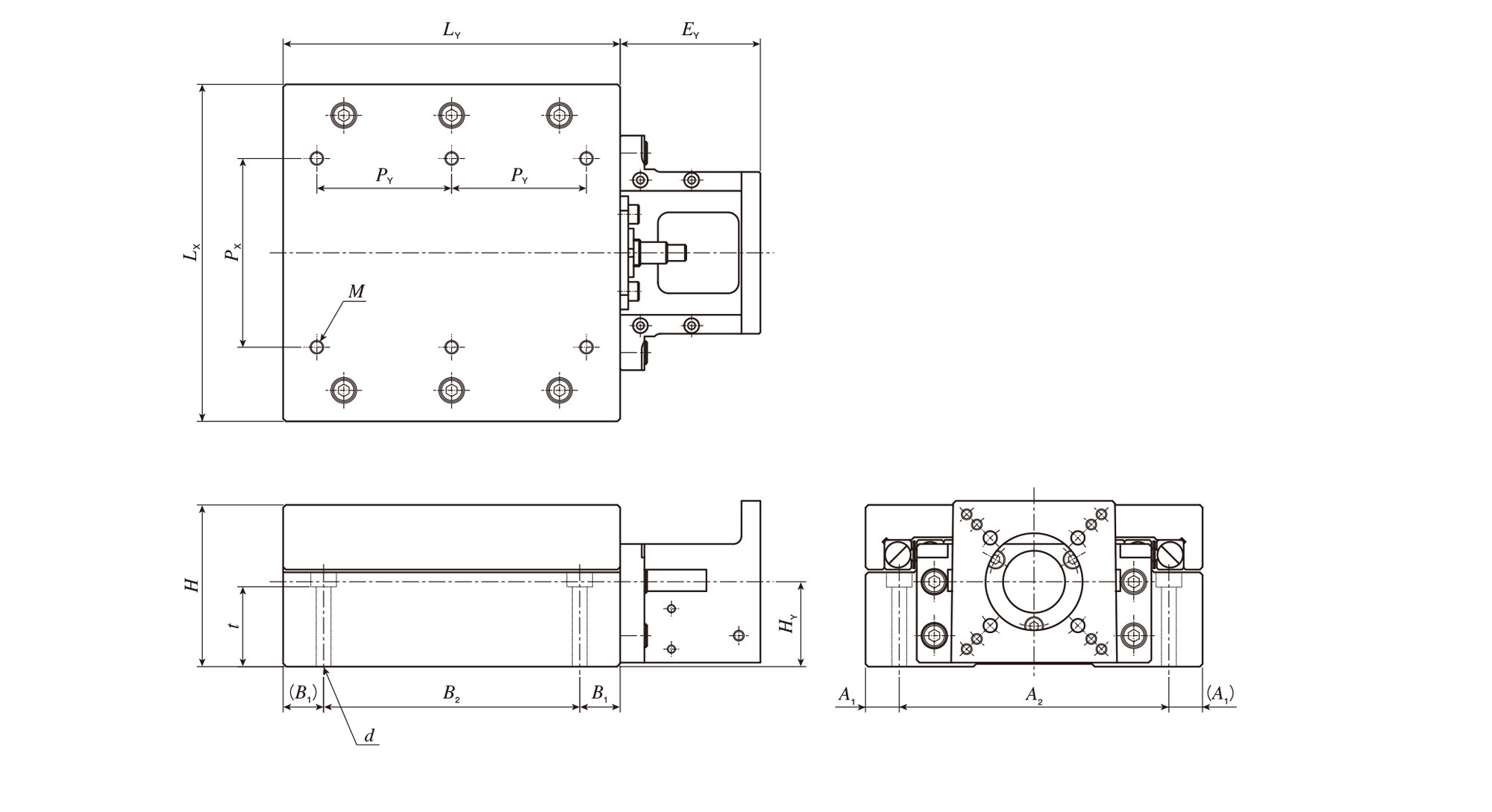

Specification without sensor

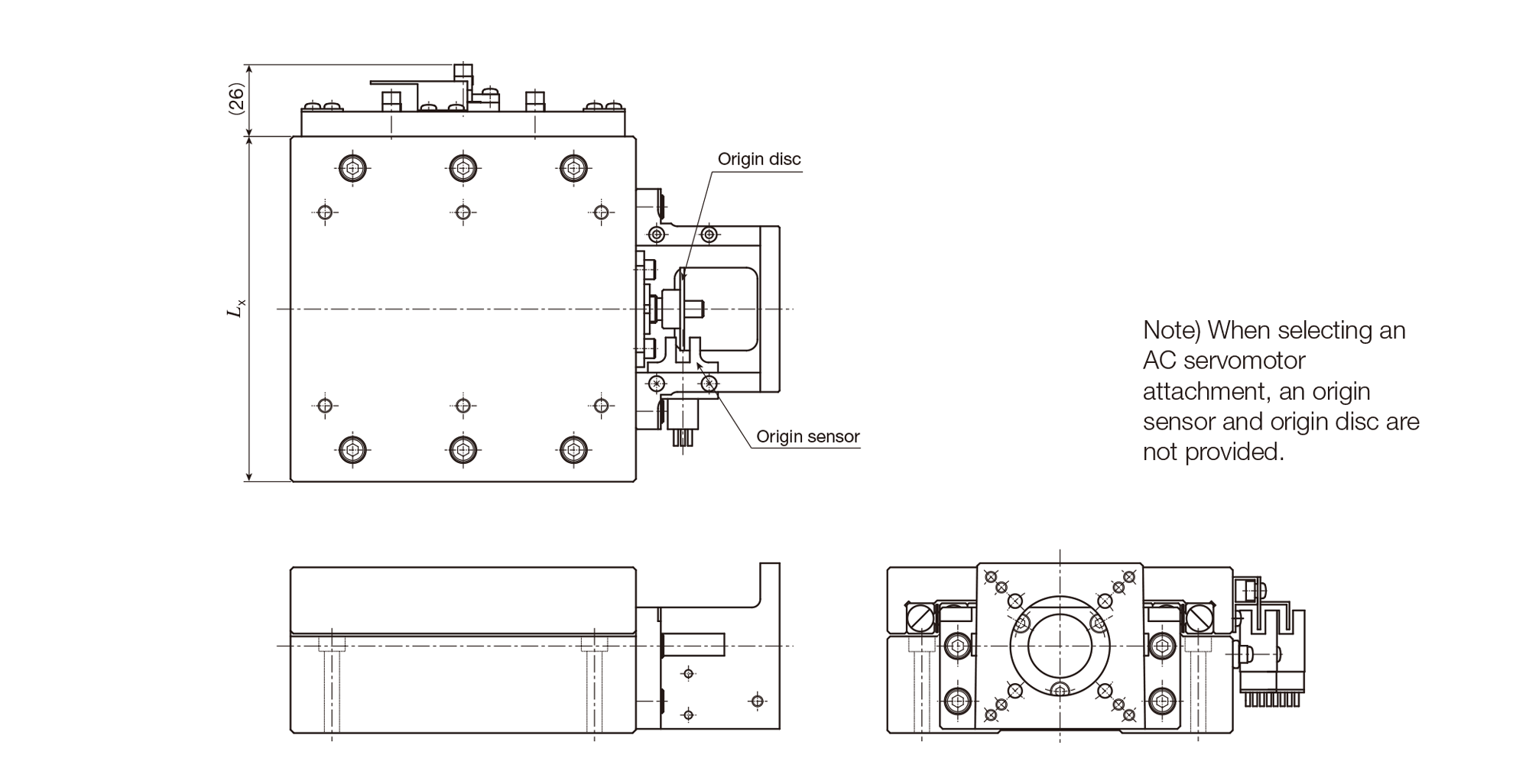

Specification with sensor

unit: mm

Identification number	Dimensions of table			Stroke length	EY	Height of shaft center HY
Identification number	LX	LY	H	Stroke length	EY	Height of shaft center HY
TS125/125(1)	125	125	60	50	52	31.5
TS220/220	220	220	65	120	72	33.5

Identification number	Mounting bolt			Bed mounting-related dimensions						Reference mass (2) Kg
Identification number	M(3)	PX	PY	d	t	A1	A2	B1	B2	Reference mass (2) Kg
TS125/125(1)	6-M5 depth 10	70	50	For 4-M5	29.6	12.5	100	15	95	7.5
TS220/220	6-M6 depth 12	150	75	For 4-M6	27.5	20	180	20	180	16.0

Notes(1)	The motor bracket is positioned 1.5mm higher than the upper surface of the table.
(2)	Mass of the sensor is not included.
(3)	Too deep insertion depth of the mounting bolt may affect the running performance of the slide table, so never insert a bolt longer than the depth of the through hole.

Product Related Inquiries

Some products are not shown in the catalogue. Also, modifications can be made to meet your requirements. Please do not hesitate to make inquiries.

TS・CT Features

TS/CT Compact Series Table is a positioning table which incorporates IKO's Crossed Roller Way, a long established precision type linear motion rolling guide. It is assembled in conjunction with a high rigidity and superior vibration-damping slide table and bed made of cast iron together with a precision ball screw as the drive mechanism. This table achieves a low sectional height, high reliability, and high accuracy by making the most of the features of the compact, high accuracy and high rigidity Crossed Roller Way. Compact Series TS/CT includes a single axis type and also a two axis type and is widely used in applications requiring high accuracy positioning such as precision measuring instruments and systems.
