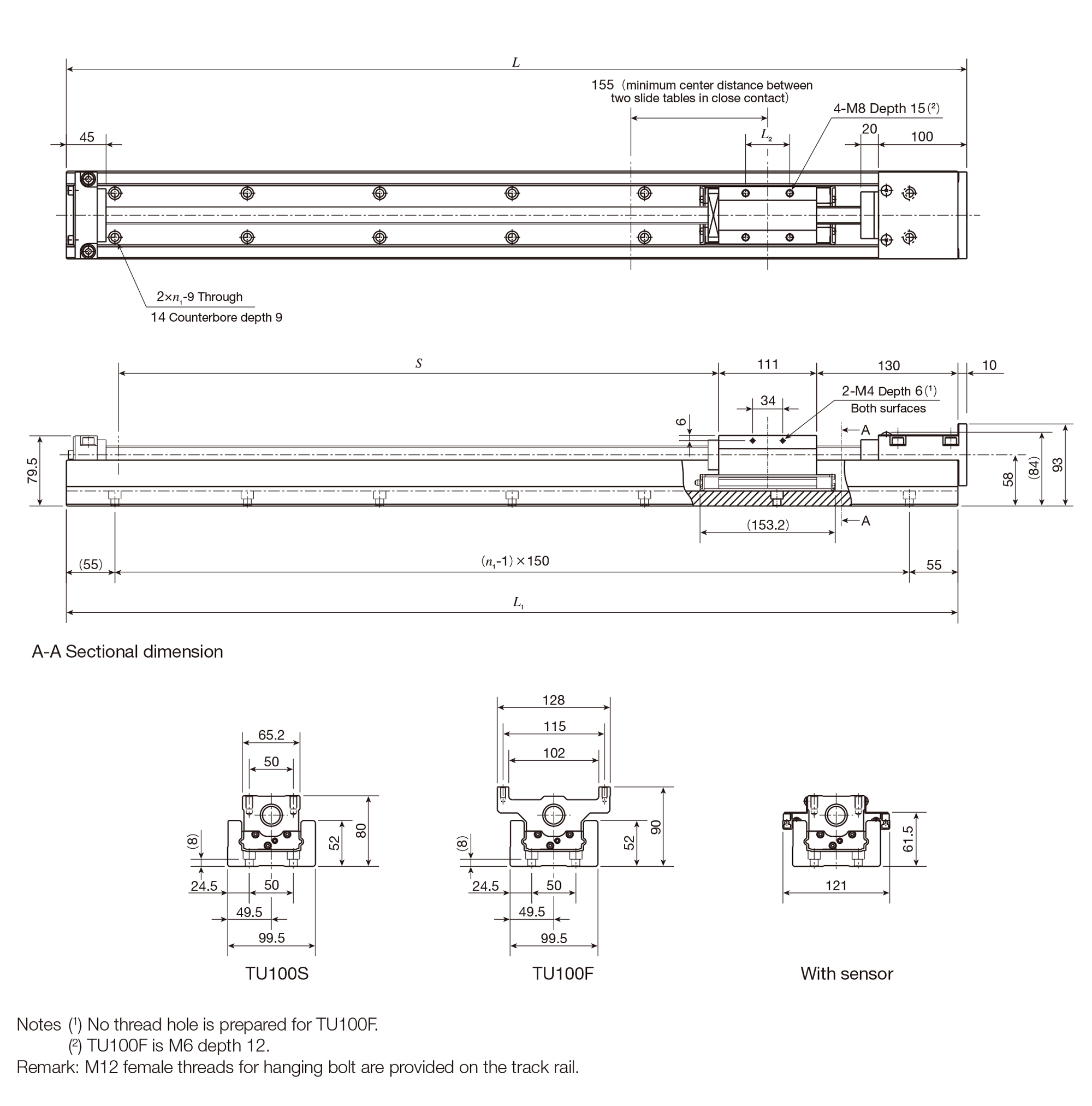

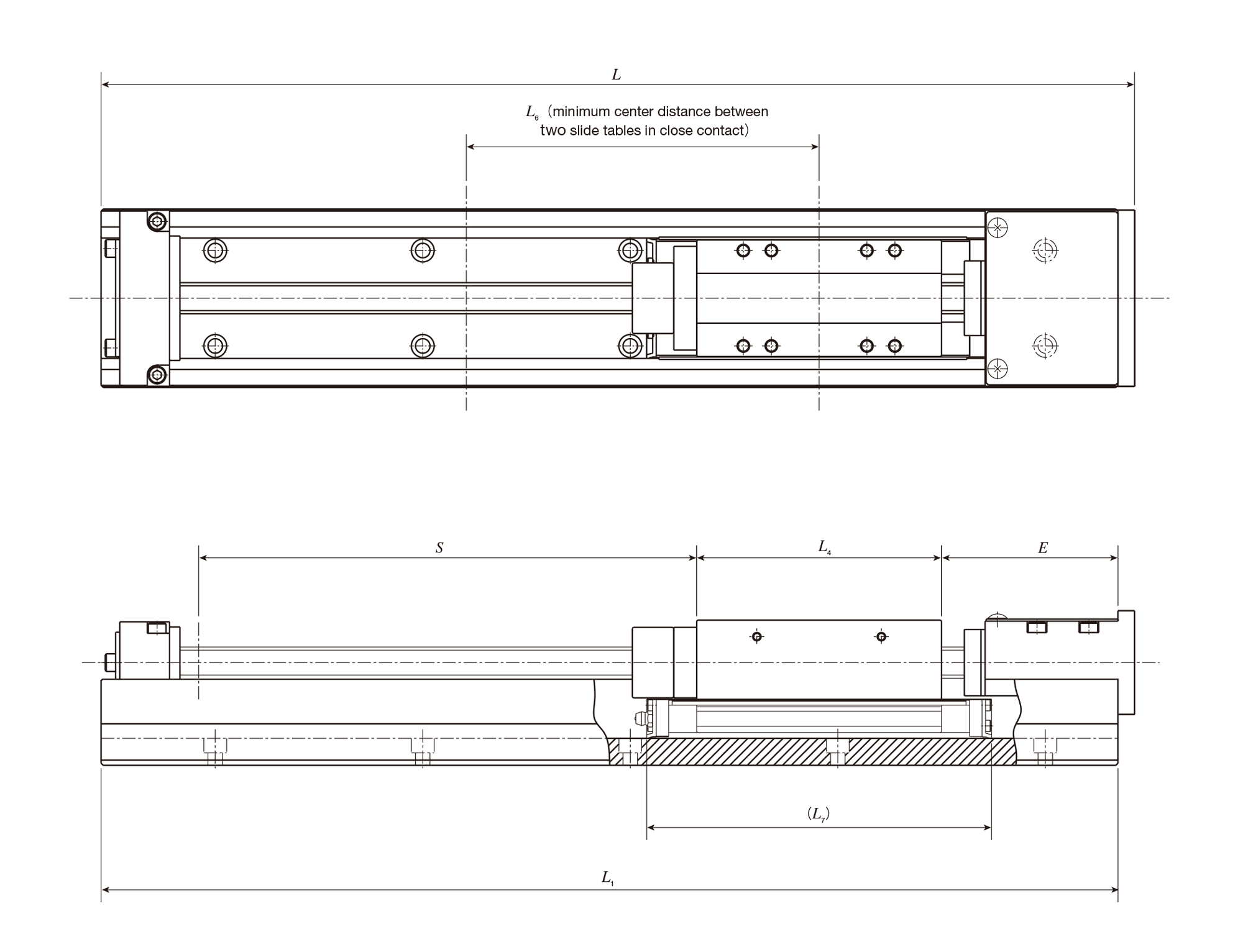

The dimensions of TU100 are shown below.

Dimensions

unit: mm

Model and size	Length of track rail L1	Overall length L	Stroke length S(1)	ｎ1	L2	Mass of slide table Kg	Mass(2) Kg
TU100S	1010	1020	690(550)	7	50	2.6	28.0
	1160	1170	840(700)	8			31.6
	1310	1320	990(850)	9			35.1
	1460	1470	1140(1000)	10			38.8
TU100F	1010	1020	690(550)	7	46	3.7	29.1
	1160	1170	840(700)	8			32.7
	1310	1320	990(850)	9			36.2
	1460	1470	1140(1000)	10			39.9

Notes（1）	The value indicates the allowable stroke length when limit sensors are mounted. The value in （） represents dimension for two slide tables in close contact.
（2）	The value shows the mass of the entire table with one slide table.

Table with C-Lube

unit: mm

Model and size	Length of track rail L1	Overall length L	Stroke length(1) S	E	L4	L6	L7
TU100S TU100F	1010	1020	670(540)	130	111	170	166
	1160	1170	820(690)
	1310	1320	970(840)
	1460	1470	1120(990)

Note（1）	The value indicates the allowable stroke length when limit sensors are mounted. The value in（） represents dimension for two slide tables in close contact.
Remark:	For dimensions of the slide table and track rail, please see the dimension table for each size.

Without ball screw specification

unit: mm

Model and size	Specification of track rail	Length of track rail L1	Without bridge cover		With bridge cover
Model and size	Specification of track rail	Length of track rail L1	F1	G1	F1	G1
TU100	Without motor folding back	1010	35	34	35	34
		1160
		1310
		1460

Remark:

For dimensions of the slide table and track rail, please see the dimension table for each size.
