Dimension

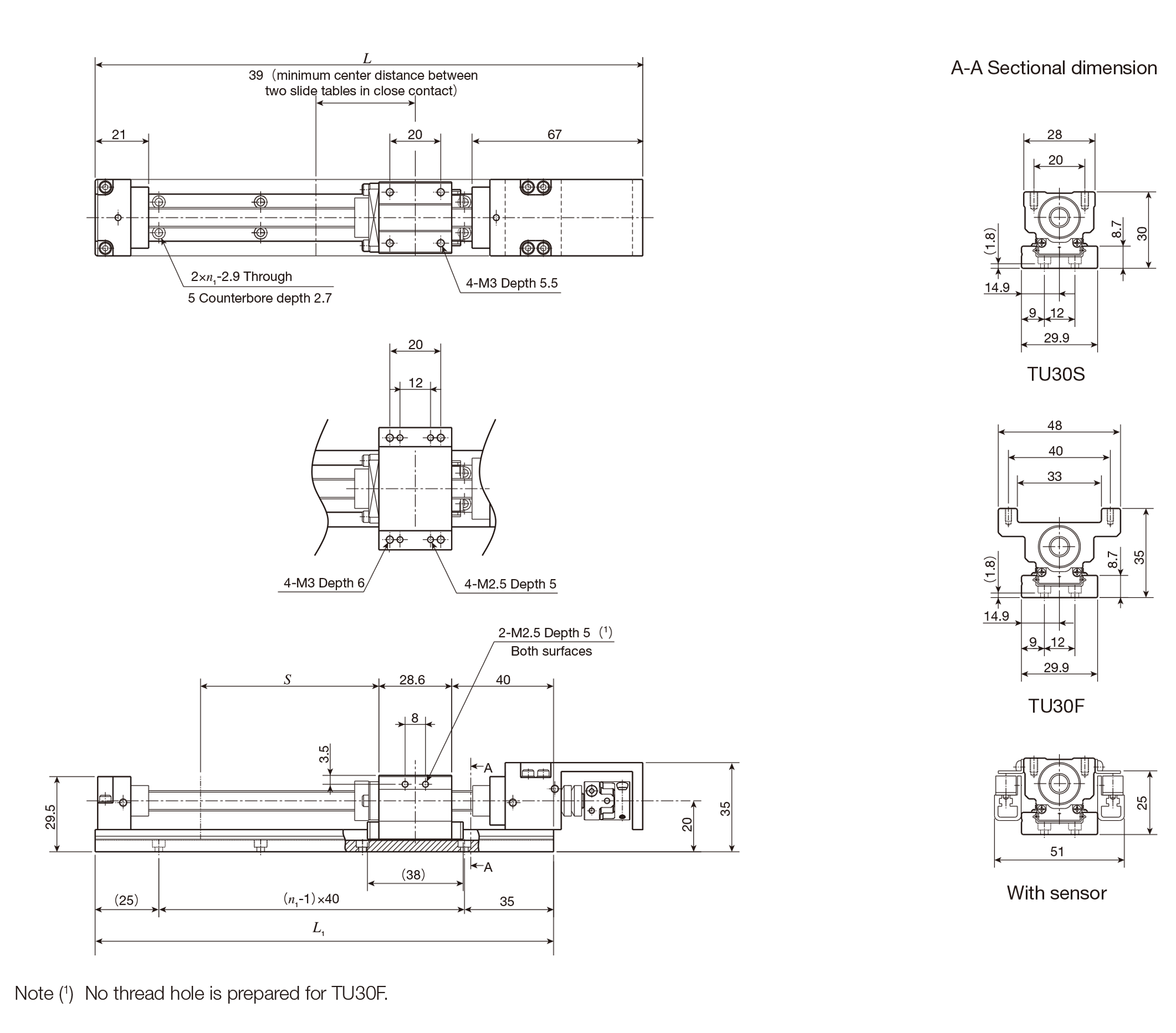

The dimensions of TU30 are shown below.
Dimensions
unit: mm
| Model and size |
Length of track rail L1 |
Overall length L |
Stroke length S(1) |
ｎ1 | Mass of slide table Kg |
Mass(2) Kg |
|---|---|---|---|---|---|---|
| TU30S | 140 | 175 | 30（－） | 3 | 0.09 | 0.49 |
| 180 | 215 | 70(45) | 4 | 0.56 | ||
| 220 | 255 | 110(85) | 5 | 0.63 | ||
| 260 | 295 | 150(125) | 6 | 0.70 | ||
| 300 | 335 | 190(165) | 7 | 0.77 | ||
| 340 | 375 | 230(205) | 8 | 0.84 | ||
| TU30F | 140 | 175 | 30（－） | 3 | 0.12 | 0.52 |
| 180 | 215 | 70(45) | 4 | 0.59 | ||
| 220 | 255 | 110(85) | 5 | 0.66 | ||
| 260 | 295 | 150(125) | 6 | 0.73 | ||
| 300 | 335 | 190(165) | 7 | 0.80 | ||
| 340 | 375 | 230(205) | 8 | 0.87 |
| Notes（1） | The value indicates the allowable stroke length when limit sensors are mounted. The value in （ ） represents dimension for two slide tables in close contact. |
| （2） | The value shows the mass of the entire table with one slide table. |
| Remark: | The material of track rail and casing is stainless steel. |
Without ball screw specification
unit: mm
| Model and size |
Specification of track rail |
Length of track rail L1 |
Without bridge cover | With bridge cover | ||
|---|---|---|---|---|---|---|
| F1 | G1 | F1 | G1 | |||
| TU30 | Without motor folding back |
140 | 14 | 14 | 14 | 14 |
| 180 | ||||||
| 220 | ||||||
| 260 | ||||||
| 300 | ||||||
| 340 | ||||||
| Remark: | For dimensions of the slide table and track rail, please see the dimension table for each size. |
Some products are not shown in the catalogue. Also, modifications can be made to meet your requirements. Please do not hesitate to make inquiries.
