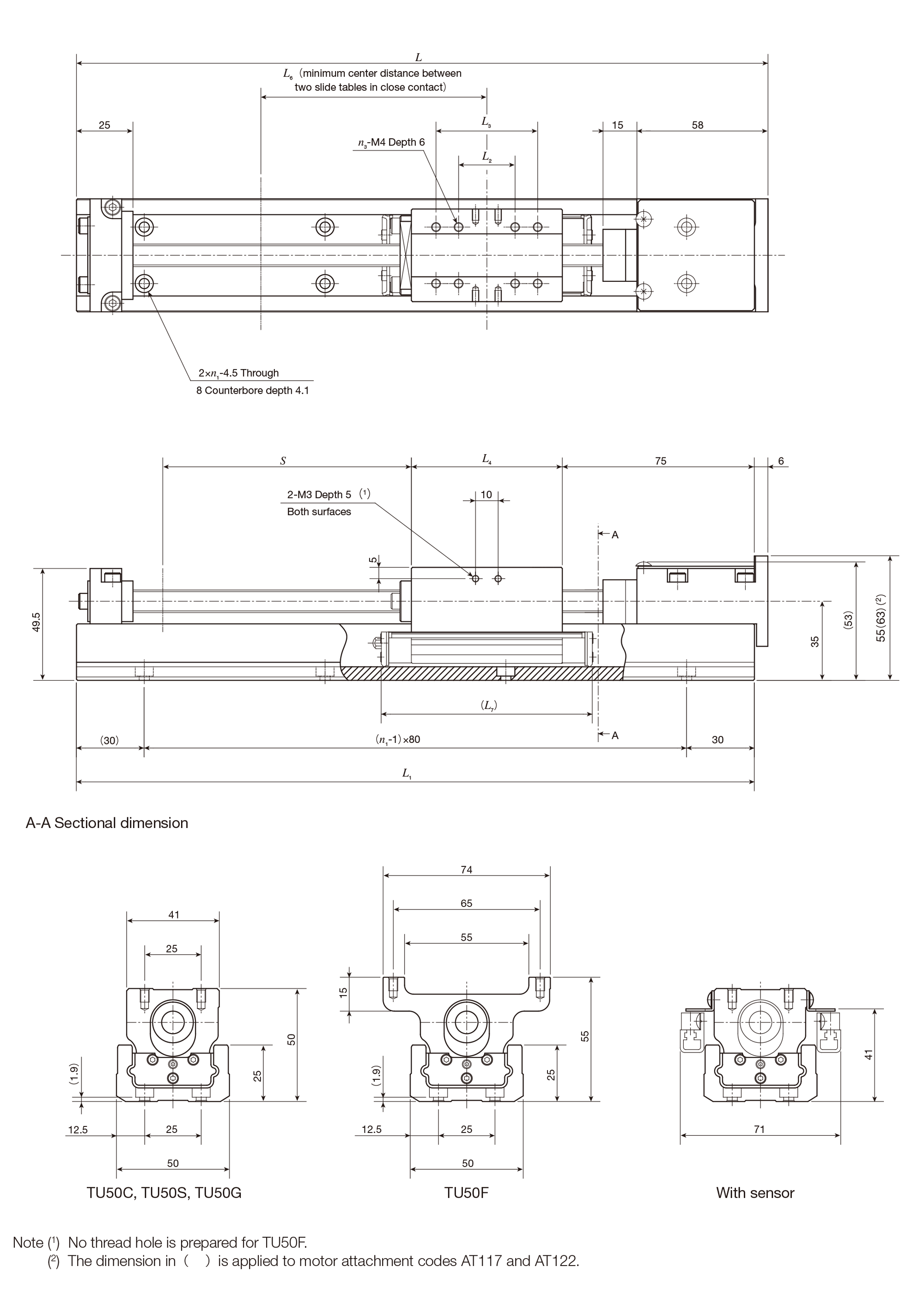

The dimensions of TU50 are shown below.

Dimensions of slide table

unit: mm

Model and size	L2	L3	L4	L6	L7	n3	Mass Kg
TU50C	－	－	23.8	55	51	2	0.2
TU50S	25	－	42.8	75	70	4	0.4
TU50G	25	45	66.8	100	94	8	0.7
TU50F	25	－	42.8	75	70	4	0.5

Dimensions of track rail

unit: mm

Length of track rail L1	Overall length L	n1	Stroke length S(1)			Mass(2) Kg
			TU50C	TU50S	TU50G	TU50C	TU50S	TU50G	TU50F
			TU50C	TU50F	TU50G	TU50C	TU50S	TU50G	TU50F
220	226	3	80(－)	60(－)	－(－)	1.6	1.8	－	1.9
300	306	4	160(115)	140(75)	120(－)	1.9	2.1	2.4	2.2
380	386	5	240(195)	220(155)	200(110)	2.3	2.5	2.8	2.6
460	466	6	320(275)	300(235)	280(190)	2.7	2.9	3.2	3.0
540	546	7	400(355)	380(315)	360(270)	3.1	3.3	3.6	3.4
620	626	8	480(435)	460(395)	440(350)	3.5	3.7	3.9	3.8
700	706	9	560(515)	540(475)	520(430)	3.8	4.0	4.3	4.1

Notes（1）	The value indicates the allowable stroke length when limit sensors are mounted. The value in （） represents dimension for two slide tables in close contact.
（2）	The value shows the mass of the entire table with one slide table.

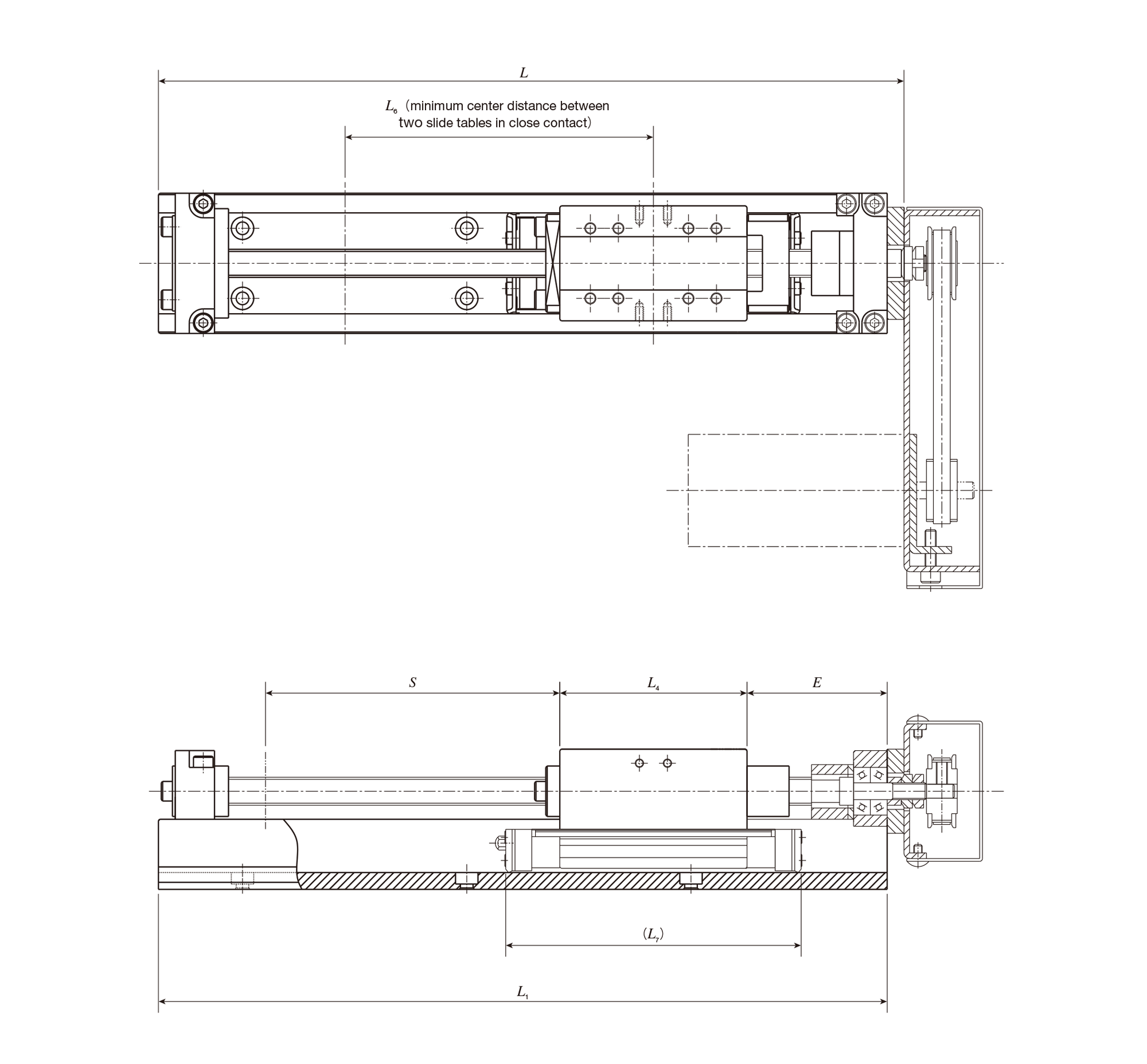

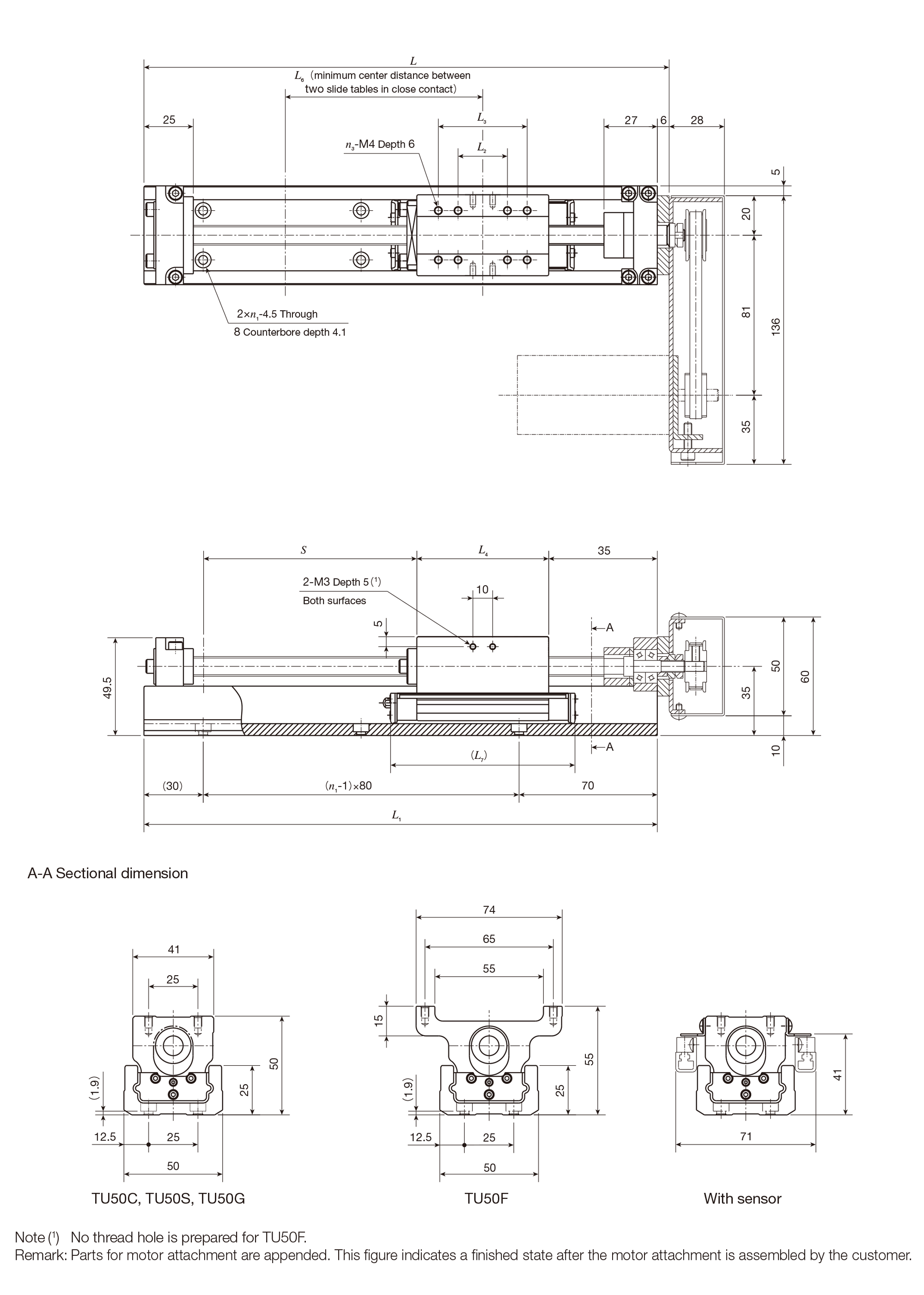

Motor folding back specification

Dimensions of slide table

unit: mm

Model and size	L2	L3	L4	L6	L7	n3	Mass Kg
TU50C	－	－	23.8	55	51	2	0.2
TU50S	25	－	42.8	75	70	4	0.4
TU50G	25	45	66.8	100	94	8	0.7
TU50F	25	－	42.8	75	70	4	0.5

Dimensions of track rail

unit: mm

Length of track rail L1	Overall length L	n1	Stroke length S(1)			Mass(2) Kg
			TU50C	TU50S	TU50G	TU50C	TU50S	TU50G	TU50F
			TU50C	TU50F	TU50G	TU50C	TU50S	TU50G	TU50F
180	186	2	80(－)	60(－)	－(－)	1.6	1.8	－	1.9
260	266	3	160(115)	140(75)	120(－)	1.9	2.1	2.4	2.2
340	346	4	240(195)	220(155)	200(110)	2.3	2.5	2.8	2.6
420	426	5	320(275)	300(235)	280(190)	2.7	2.9	3.2	3.0
500	506	6	400(355)	380(315)	360(270)	3.1	3.3	3.6	3.4
580	586	7	480(435)	460(395)	440(350)	3.5	3.7	3.9	3.8
660	666	8	560(515)	540(475)	520(430)	3.8	4.0	4.3	4.1

Notes（1）	The value indicates the allowable stroke length when limit sensors are mounted. The value in （） represents dimension for two slide tables in close contact.
（2）	The value shows the mass of the entire table with one slide table.

Table with C-Lube

unit: mm

Model and size	Length of track rail L1	Overall length L	Stroke length S(1)	E	L4	L6	L7
TU50C	220	226	65(－)	90	23.8	65	63
	300	306	145(90)
	380	386	225(170)
	460	466	305(250)
	540	546	385(330)
	620	626	465(410)
	700	706	545(490)
TU50S TU50F	220	226	45(－)	90	42.8	85	82
	300	306	125(50)
	380	386	205(130)
	460	466	285(210)
	540	546	365(290)
	620	626	445(370)
	700	706	525(450)
TU50G	300	306	100(－)	90	66.8	110	106
	380	386	180(－)
	460	466	260(160)
	540	546	340(240)
	620	626	420(320)
	700	706	500(400)

Note （1）	The value indicates the allowable stroke length when limit sensors are mounted. The value in（） represents dimension for two slide tables in close contact.
Remark:	For dimensions of the slide table and track rail, please see the dimension table for each size.

Table with C-Lube (Motor folding back specification)

unit: mm

Model and size	Length of track rail L1	Overall length L	Stroke length(1) S	E	L4	L6	L7
TU50C	180	186	65(－)	50	23.8	65	63
	260	266	145(90)
	340	346	225(170)
	420	426	305(250)
	500	506	385(330)
	580	586	465(410)
	660	666	545(490)
TU50S TU50F	180	186	45(－)	50	42.8	85	82
	260	266	125(50)
	340	346	205(130)
	420	426	285(210)
	500	506	365(290)
	580	586	445(370)
	660	666	525(450)
TU50G	260	266	100(－)	50	66.8	110	106
	340	346	180(80)
	420	426	260(160)
	500	506	340(240)
	580	586	420(320)
	660	666	500(400)

Note（1）	The value indicates the allowable stroke length when limit sensors are mounted. The value in（） represents dimension for two slide tables in close contact.
Remarks	Parts for motor attachment are appended. This figure indicates a finished state after the motor attachment is assembled by the customer. For dimensions of the slide table and track rail, please see the dimension table for each size.

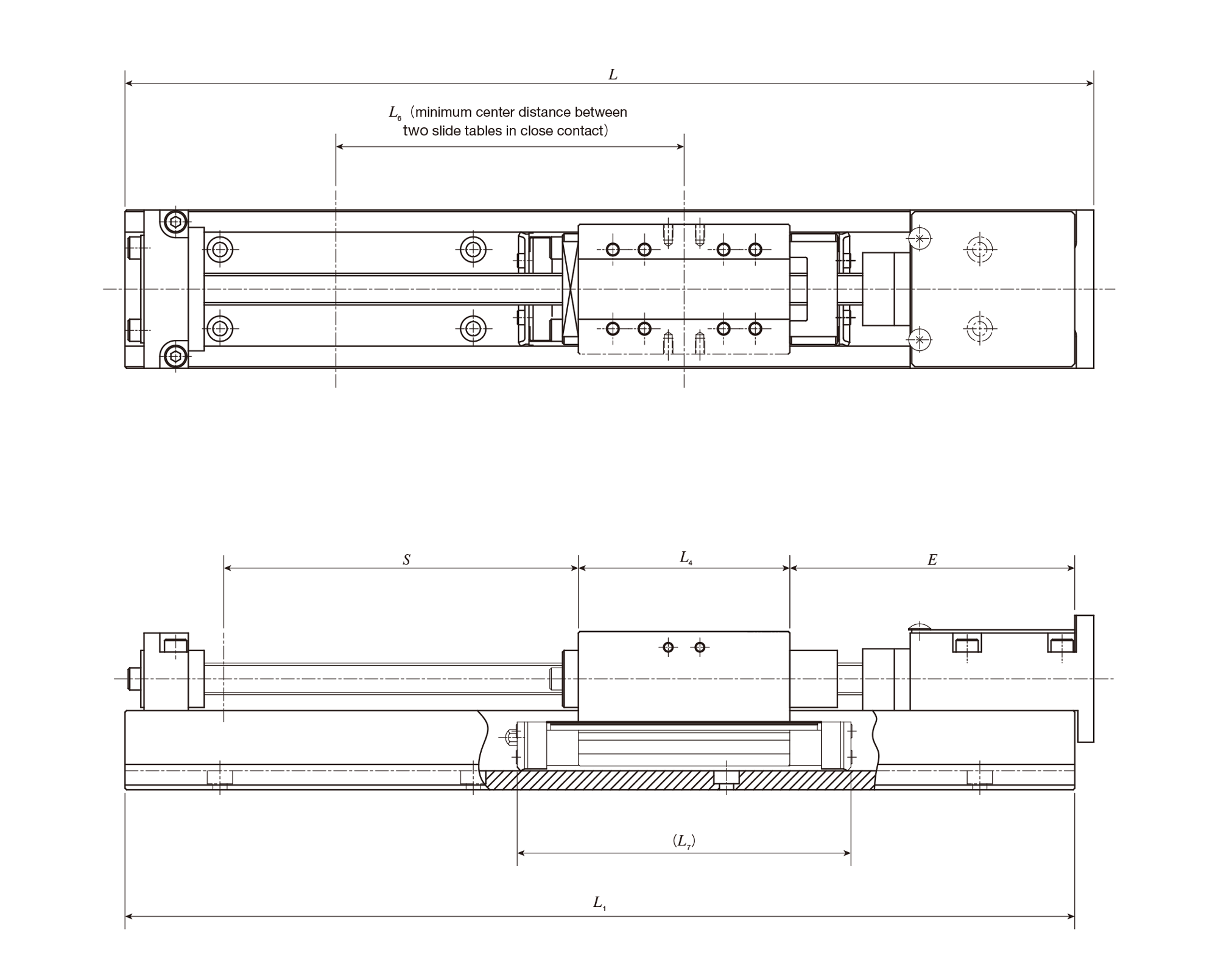

Without ball screw specification

unit: mm

Model and size	Specification of track rail	Length of track rail L1	Without bridge cover		With bridge cover
Model and size	Specification of track rail	Length of track rail L1	F1	G1	F1	G1
TU50	Without motor folding back	220	20	18	20	18
		300
		380
		460
		540
		620
		700
	Motor folding back specification	180	20	18	20	18
		260
		340
		420
		500
		580
		660

Remark:

For dimensions of the slide table and track rail, please see the dimension table for each size.

Product Related Inquiries

Some products are not shown in the catalogue. Also, modifications can be made to meet your requirements. Please do not hesitate to make inquiries.

TU Features

TU Series is a slim, low-profile positioning table that consists of a U-shaped track rail and a slide table. The slide table assembled inside the U-shaped track rail is an integral part of a linear motion rolling guide mechanism, in which two rows of large diameter steel balls are arranged in four point contact with raceways. Owing to this design, stable, high accuracy motion and high rigidity are obtained in operations even when loads are fluctuating, varying in direction and magnitude, or are complex. Also, by adopting a U-shaped track rail, the rigidity of track rail under moment load and torsion is greatly improved. TU Series includes six sizes with a track rail widths of between 25 mm to 130 mm. For each of them, various slide table lengths can be selected. Also, ball screw types and leads, motor types, and sensor installations, etc. can be selected to obtain an optimum positioning table suitable for each application.
