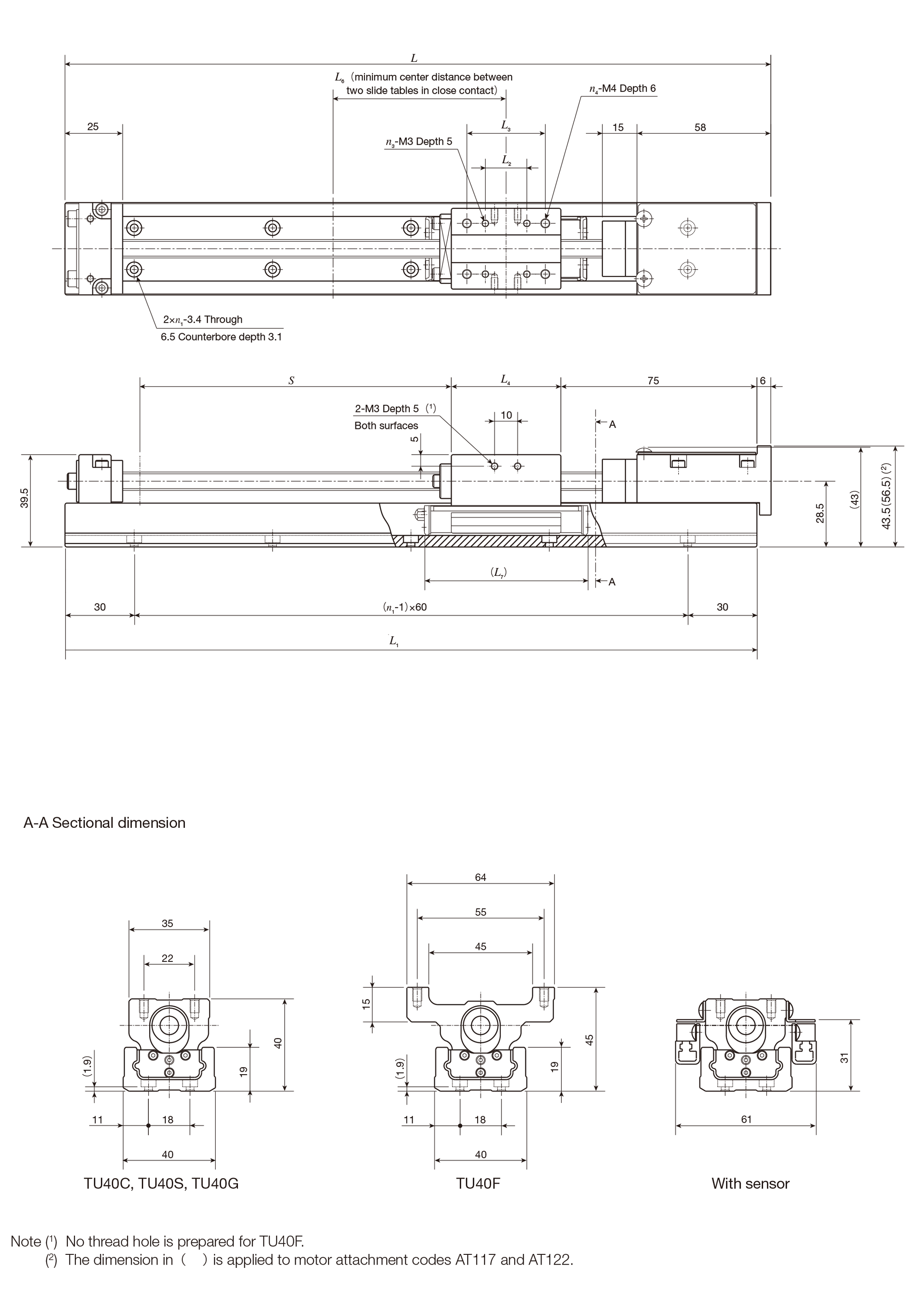

The dimensions of TU40 are shown below.

Dimensions of slide table

unit: mm

Model and size	L2	L3	L4	L6	L7	n3	n4	Mass Kg
TU40C	－	－	19.5	45	43	－	2	0.1
TU40S	－	18	31.5	60	55	－	4	0.2
TU40G	18	34	47.5	75	71	4	4	0.3
TU40F	－	18	31.5	60	55	－	4	0.3

Dimensions of track rail

unit: mm

Length of track rail L1	Overall length L	n1	Stroke length S(1)			Mass(2) Kg
			TU40C	TU40S	TU40G	TU40C	TU40S	TU40G	TU40F
			TU40C	TU40F	TU40G	TU40C	TU40S	TU40G	TU40F
180	186	3	45(－)	30(－)	－(－)	0.9	1.0	－	1.1
240	246	4	105(70)	90(40)	80(－)	1.1	1.2	1.3	1.3
300	306	5	165(130)	150(100)	140(70)	1.2	1.3	1.4	1.4
360	366	6	225(190)	210(160)	200(130)	1.4	1.5	1.6	1.6
420	426	7	285(250)	270(220)	260(190)	1.6	1.7	1.8	1.8

Notes（1）	The value indicates the allowable stroke length when limit sensors are mounted. The value in （） represents dimension for two slide tables in close contact.
（2）	The value shows the mass of the entire table with one slide table.

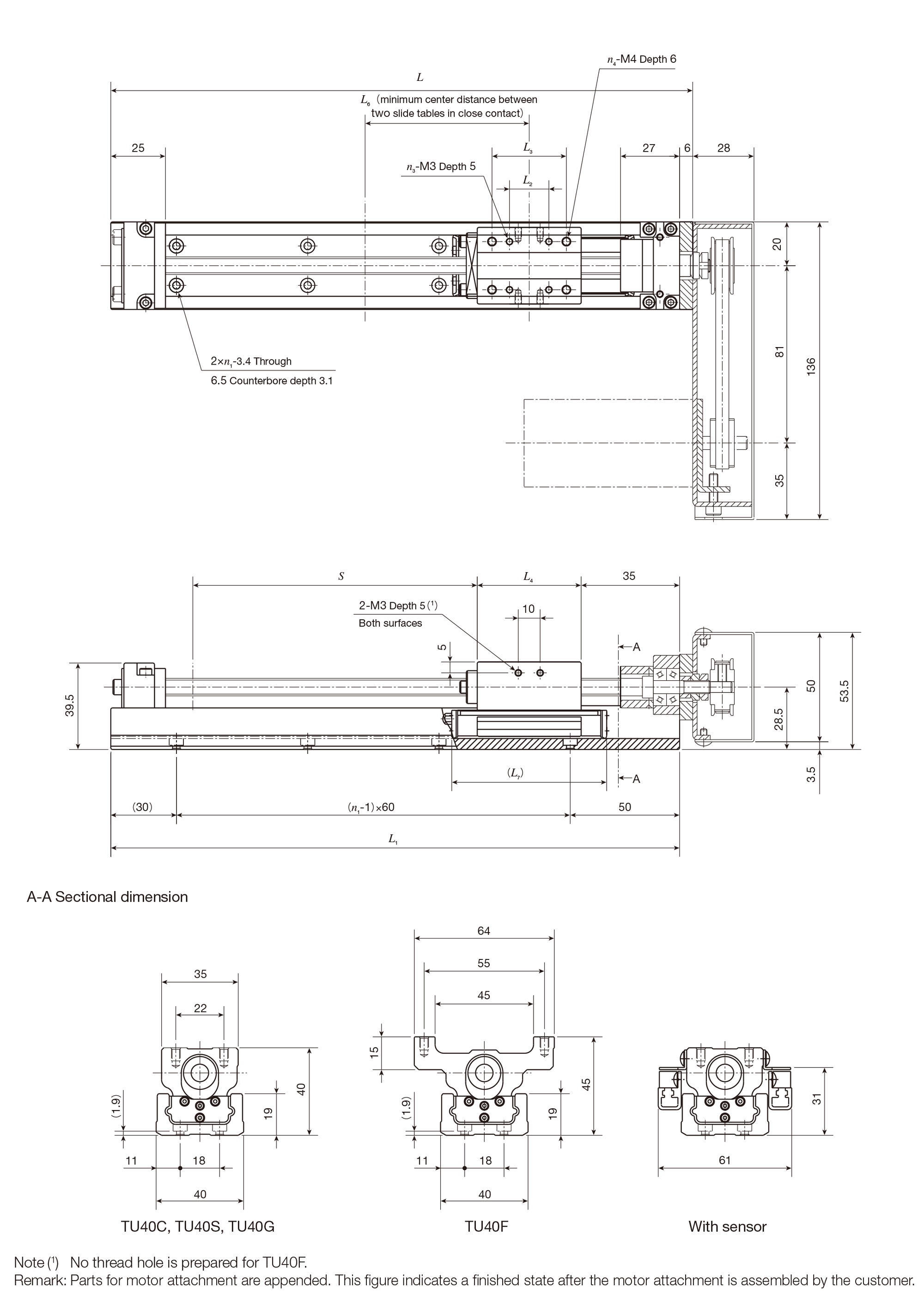

Motor folding back specification

Dimensions of slide table

unit: mm

Model and size	L2	L3	L4	L6	L7	n3	n4	Mass Kg
TU40C	－	－	19.5	45	43	－	2	0.1
TU40S	－	18	31.5	60	55	－	4	0.2
TU40G	18	34	47.5	75	71	4	4	0.3
TU40F	－	18	31.5	60	55	－	4	0.3

Dimensions of track rail

unit: mm

Length of track rail L1	Overall length L	n1	Stroke length S(1)			Mass(2) Kg
			TU40C	TU40S	TU40G	TU40C	TU40S	TU40G	TU40F
			TU40C	TU40F	TU40G	TU40C	TU40S	TU40G	TU40F
140	146	2	45(－)	30(－)	－(－)	1.0	1.1	－	1.2
200	206	3	105(70)	90(40)	80(－)	1.2	1.3	1.4	1.4
260	266	4	165(130)	150(100)	140(70)	1.4	1.5	1.6	1.6
320	326	5	225(190)	210(160)	200(130)	1.6	1.7	1.8	1.8
380	386	6	285(250)	270(220)	260(190)	1.8	1.9	2.0	2.0

Notes（1）	The value indicates the allowable stroke length when limit sensors are mounted. The value in （） represents dimension for two slide tables in close contact.
（2）	The value shows the mass of the entire table with one slide table.

Table with C-Lube

unit: mm

Model and size	Length of track rail L1	Overall length L	Stroke length S(1)	E	L4	L6	L7
TU40C	180	186	30(－)	90	19.5	60	55
	240	246	90(40)
	300	306	150(100)
	360	366	210(160)
	420	426	270(220)
TU40S TU40F	240	246	80(－)	90	31.5	70	67
	300	306	140(75)
	360	366	200(135)
	420	426	260(195)
TU40G	240	246	60(－)	90	47.5	85	83
	300	306	120(－)
	360	366	180(105)
	420	426	240(165)

Note（1）	The value indicates the allowable stroke length when limit sensors are mounted. The value in（） represents dimension for two slide tables in close contact.
Remark:	For dimensions of the slide table and track rail, please see the dimension table for each size.

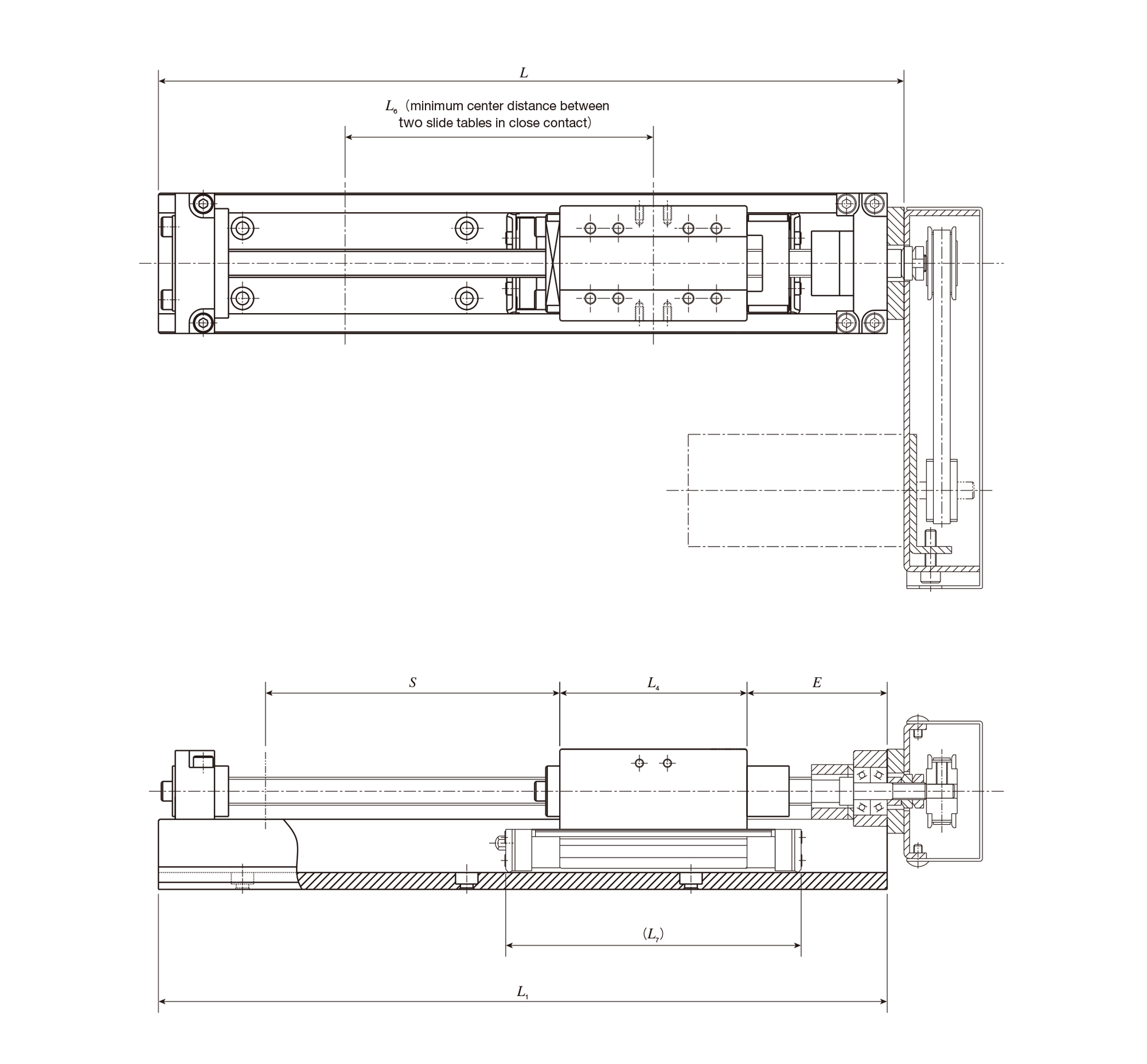

Table with C-Lube (Motor folding back specification)

unit: mm

Model and size	LengthL1	Overall length L	Stroke length(1) S	E	L4	L6	L7
TU40C	140	146	30(－)	50	19.5	60	55
	200	206	90(40)
	260	266	150(100)
	320	326	210(160)
	380	386	270(220)
TU40S TU40F	200	206	80(－)	50	31.5	70	67
	260	266	140(75)
	320	326	200(135)
	380	386	260(195)
TU40G	200	206	60(－)	50	47.5	85	83
	260	266	120(－)
	320	326	180(105)
	380	386	240(165)

Note（1）	The value indicates the allowable stroke length when limit sensors are mounted. The value in（） represents dimension for two slide tables in close contact.
Remarks	Parts for motor attachment are appended. This figure indicates a finished state after the motor attachment is assembled by the customer For dimensions of the slide table and track rail, please see the dimension table for each size

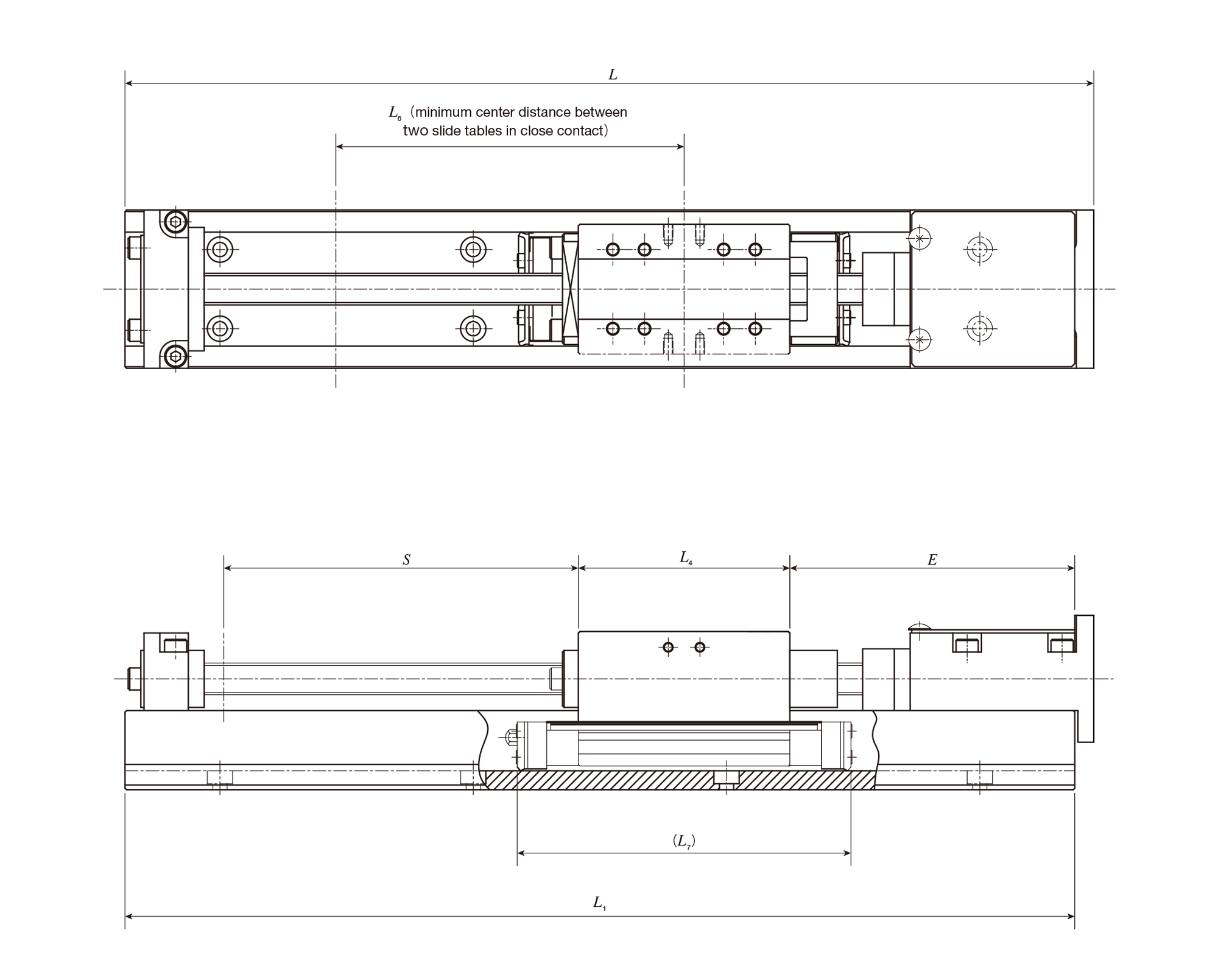

Without ball screw specification

unit: mm

Model and size	Specification of track rail	Length of track rail L1	Without bridge cover		With bridge cover
Model and size	Specification of track rail	Length of track rail L1	F1	G1	F1	G1
TU40	Without motor folding back	180	20	18	20	18
		240
		300
		360
		420
	Motor folding back specification	140	20	18	20	18
		200
		260
		320
		380

Remark:

For dimensions of the slide table and track rail, please see the dimension table for each size.
