Special specification

Special specifications

By simply specifying the required functions and performance from the identification number selection tool, a wide range of options for the optimal positioning table can be easily configured to suit the application.

1.Shape and length of the slide table

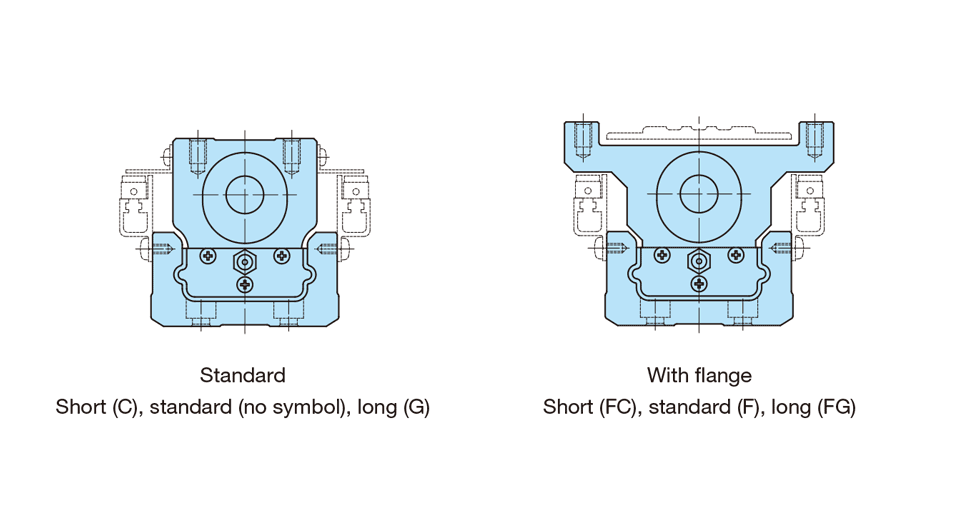

The shape can be selected from two types, "standard" type and "with flange" type, and three types with different length with same section, i.e. short, standard, and long are listed on lineup. A bridge cover and XY bracket can be attached to the "with flange" type.

2.Number of slide tables

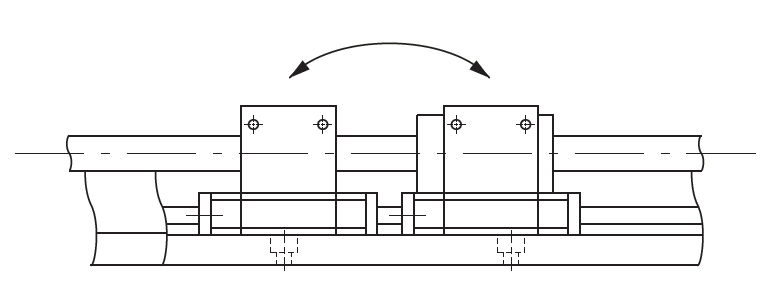

Two slide tables can be mounted on the track rail depending on the applied load and the moment.

3.Type and lead of ball screw

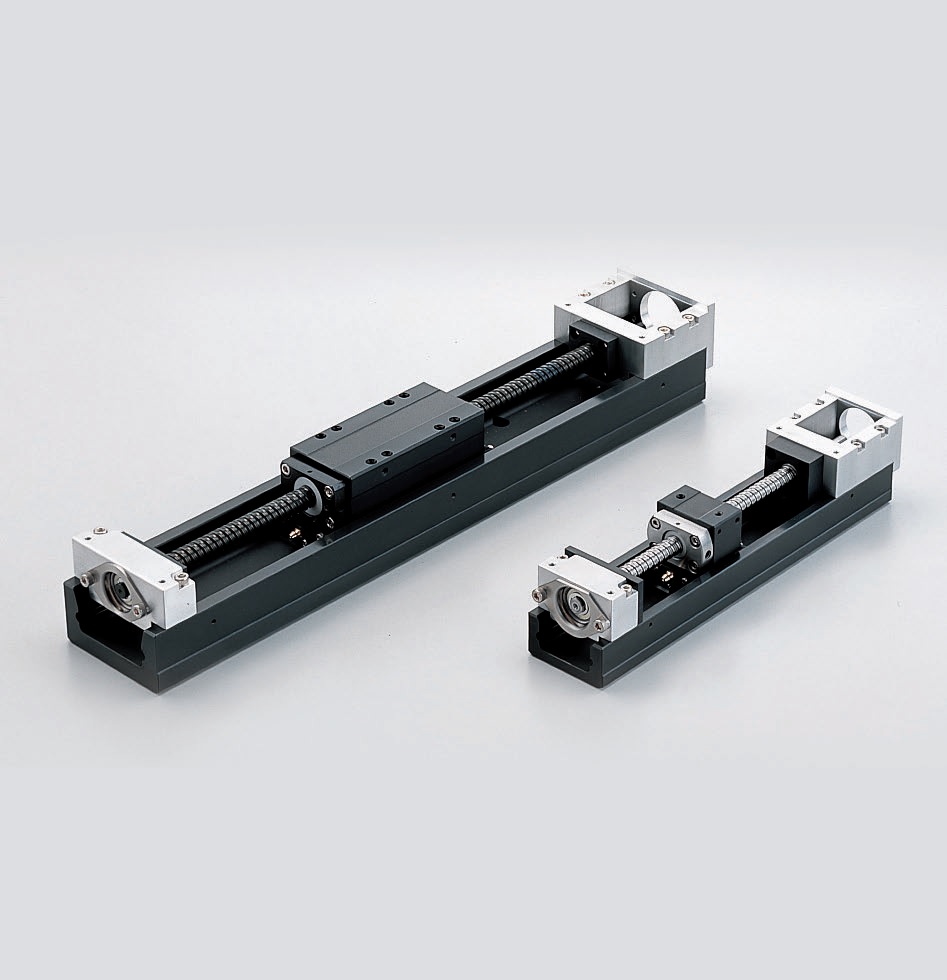

Rolled ball screws and precision ball screws can be selected according to required accuracy. Ball screw lead is also selectable. The specification without ball screw can be used as a driven side linear motion rolling guide in biaxial parallel arrangement.

4.Designation of sensor

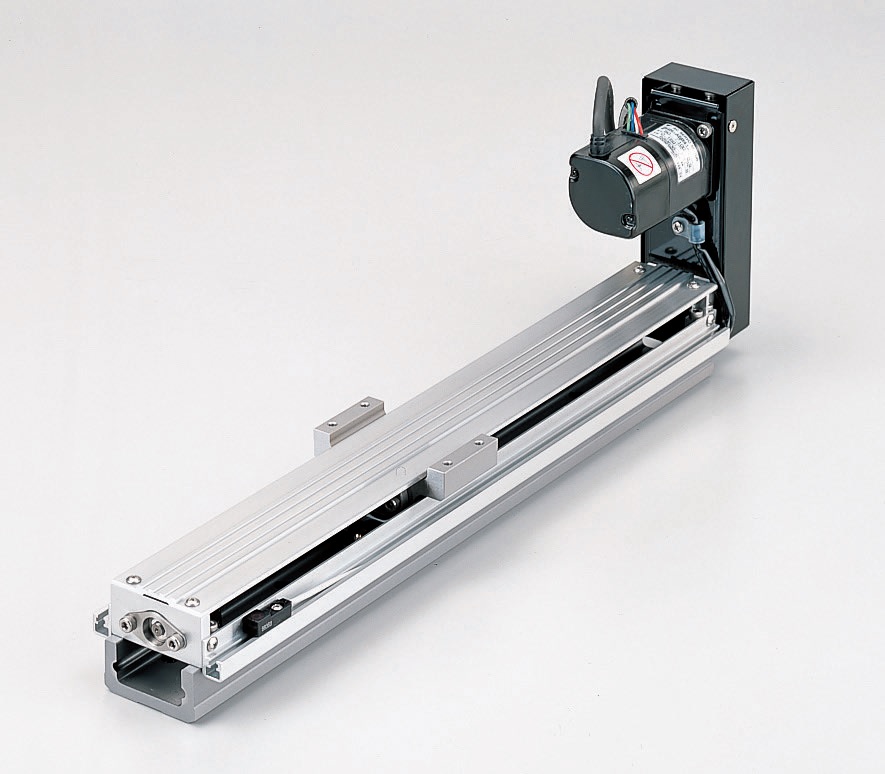

A variety of sensors can be specified for mounting, including limit sensors and origin sensors.

5.Table with C-Lube

Maintenance works such as relubricating with grease for ball screws and linear motion rolling guides can be reduced significantly by attaching lubrication part "C-Lube" impregnated with lubricant.

6.Motor folding back specification

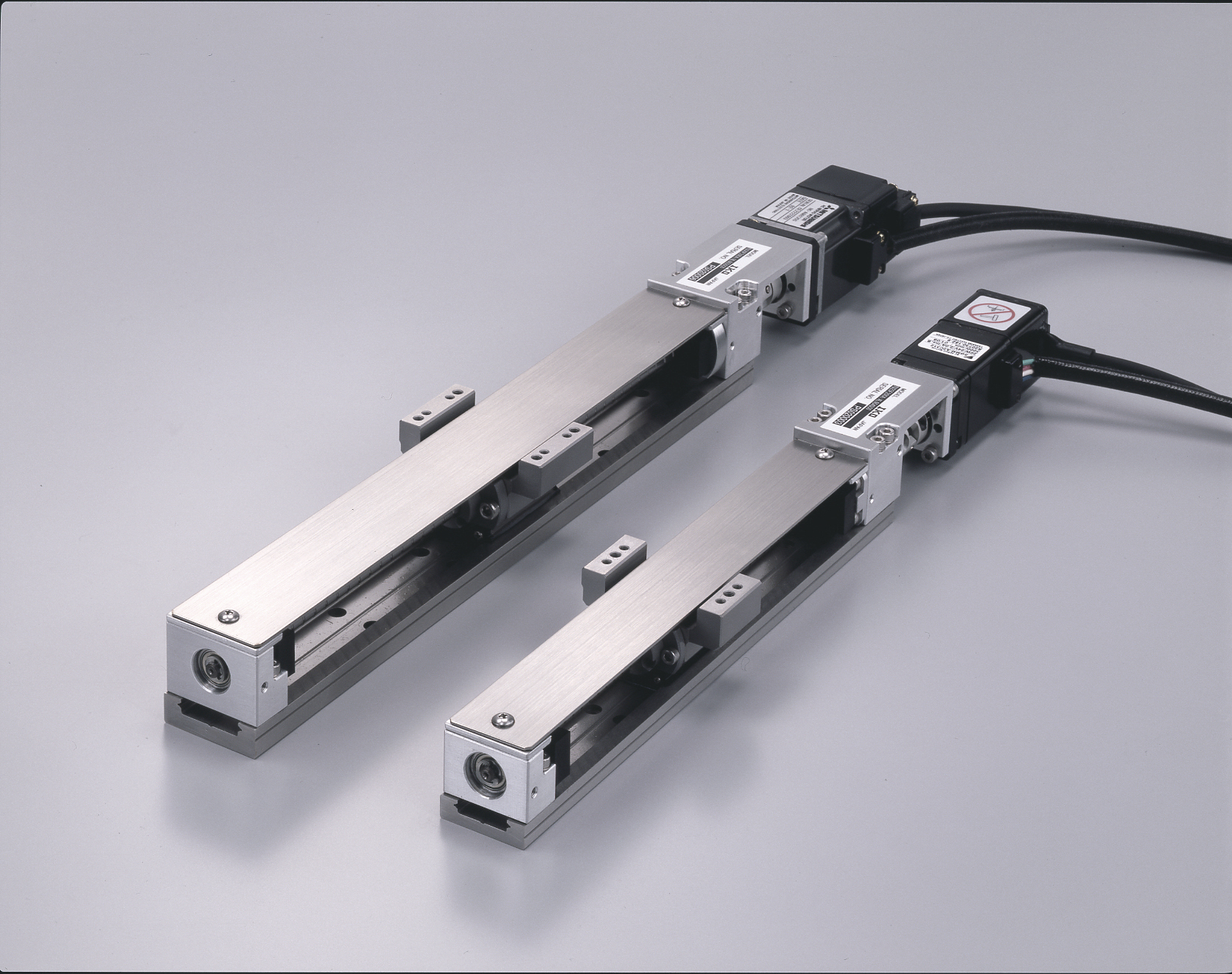

The motor folding back specification table can realize space saving by reducing the overall length of the table.

7.With bridge cover

A bridge cover can be attached to the "With flange" type.

8.Table with bellows

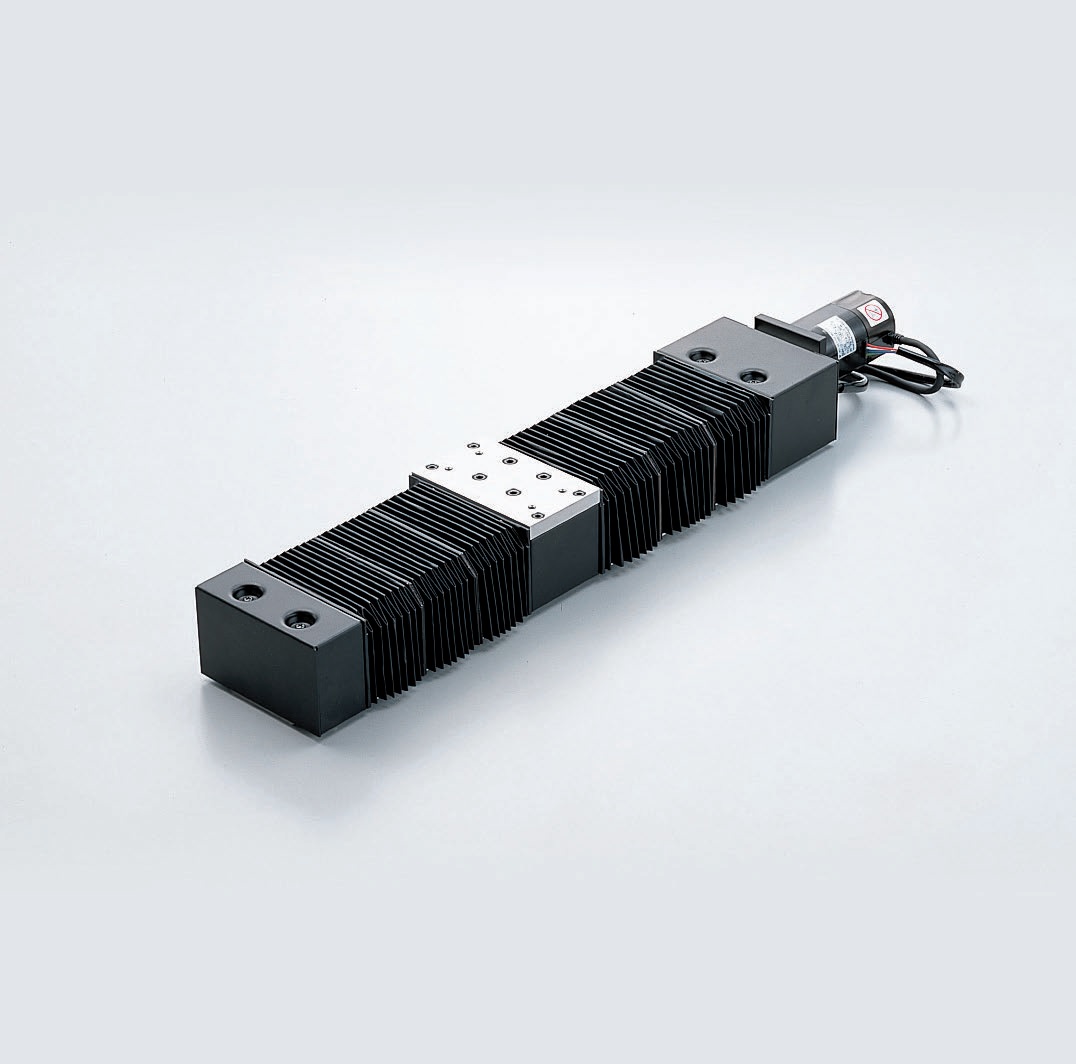

A series of tables with bellows is available for preventing foreign matter from intruding into the table by covering the linear motion rolling guide and drive section with bellows.

9.Black chrome surface treatment

Black permeable film is applied on the surface of slide table and ball screw to improve the corrosion resistance.

10.XY bracket

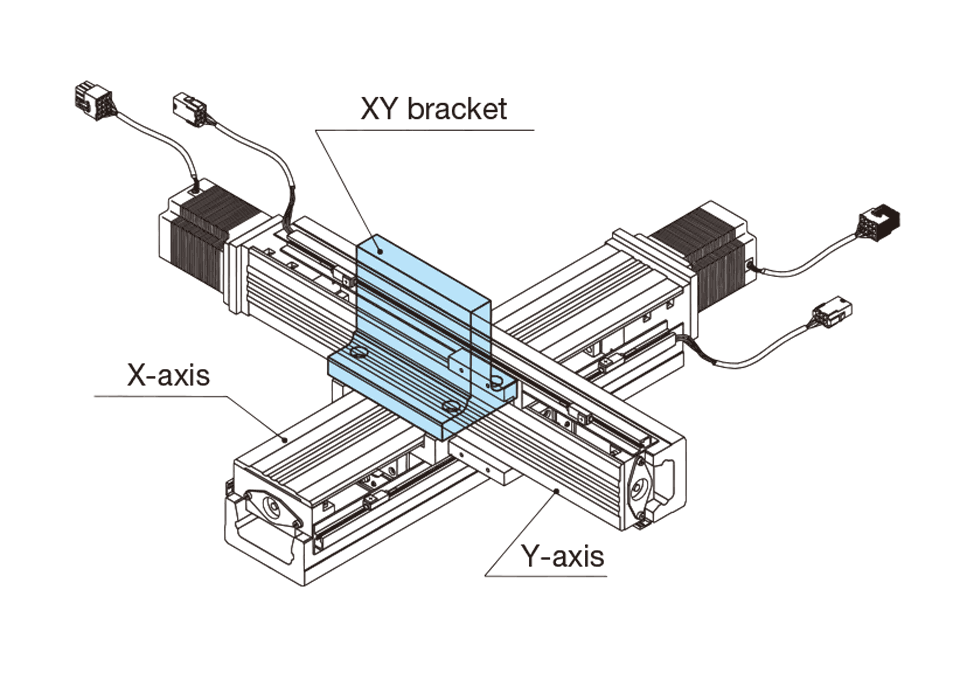

XY table can be configured easily since a series of XY bracket is available.

Product Related Inquiries

Some products are not shown in the catalogue. Also, modifications can be made to meet your requirements. Please do not hesitate to make inquiries.

TU Features

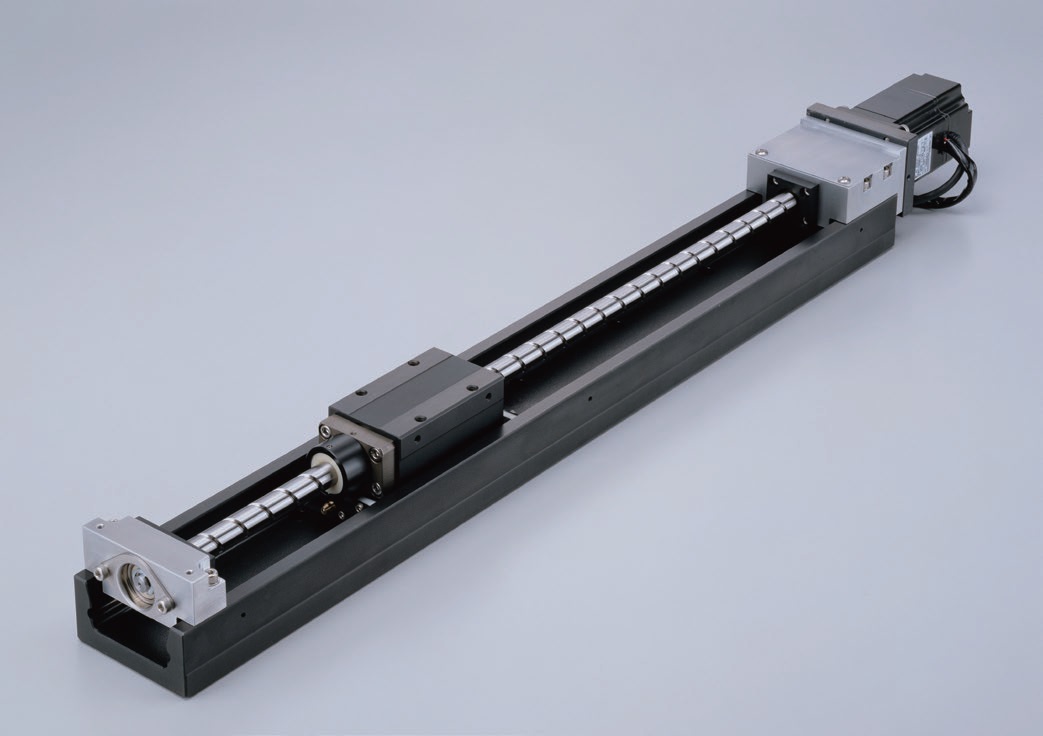

TU Series is a slim, low-profile positioning table that consists of a U-shaped track rail and a slide table. The slide table assembled inside the U-shaped track rail is an integral part of a linear motion rolling guide mechanism, in which two rows of large diameter steel balls are arranged in four point contact with raceways. Owing to this design, stable, high accuracy motion and high rigidity are obtained in operations even when loads are fluctuating, varying in direction and magnitude, or are complex. Also, by adopting a U-shaped track rail, the rigidity of track rail under moment load and torsion is greatly improved. TU Series includes six sizes with a track rail widths of between 25 mm to 130 mm. For each of them, various slide table lengths can be selected. Also, ball screw types and leads, motor types, and sensor installations, etc. can be selected to obtain an optimum positioning table suitable for each application.
